MP-20x Telephone Adapter 8. Quality of Service (QoS)

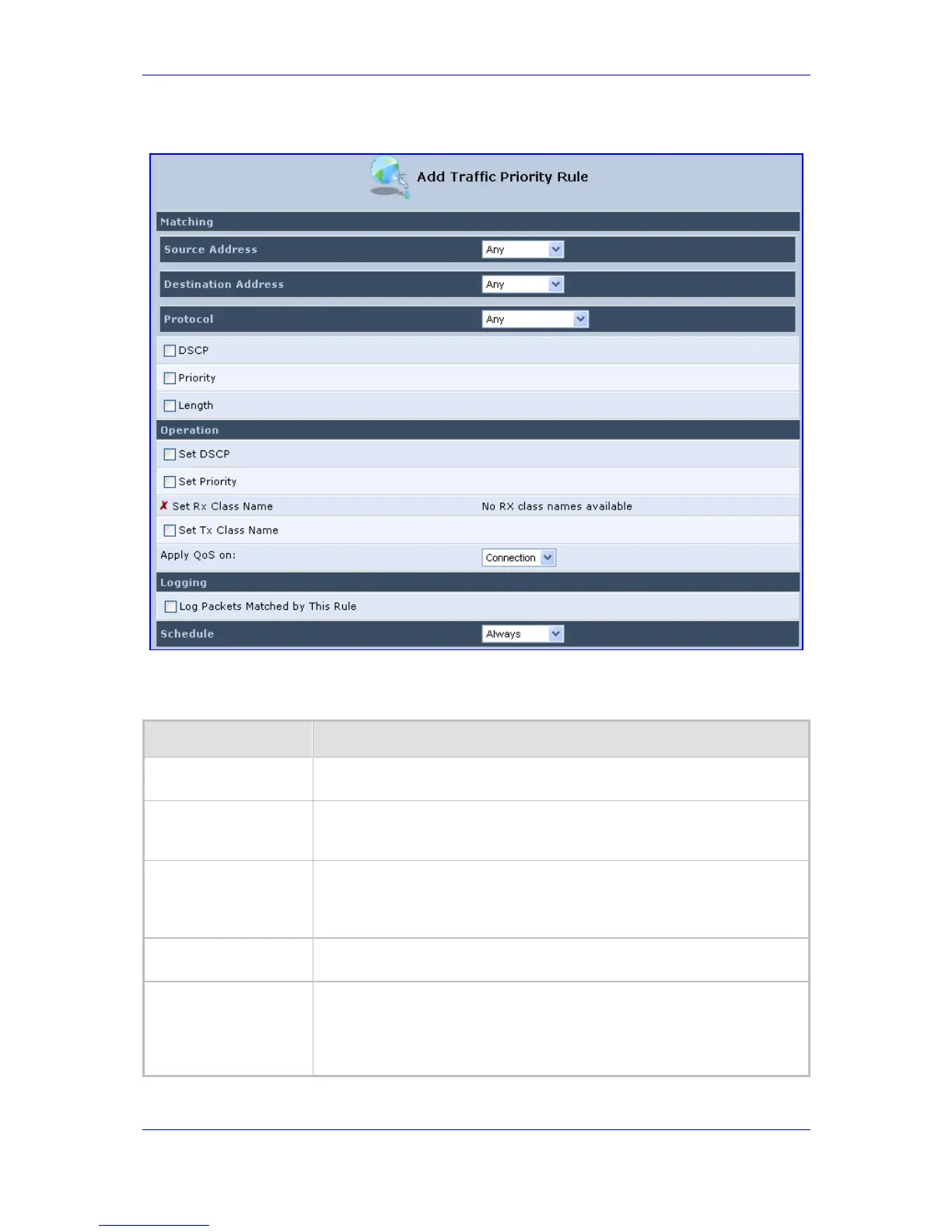

Figure 8-7: QoS - Add Traffic Priority Rule
Table 8-3: Add Traffic Priority Rule - Parameter Descriptions
Parameter Description
Source Address
The source address of the packets sent to or received from the network
object. From the drop-down list choose 'Any', 'User Defined' or the host.
Destination Address
The destination address of the packets sent to or received from the network
object. This address can be configured in the same manner as the source
address. From the drop-down list choose 'Any', 'User Defined' or the host.
Protocol
From the drop-down list, choose a specific traffic protocol, or add a new
one by choosing 'User Defined'; the screen 'Edit Service' opens. Click the
icon 'new' under the column 'Action'; this commences a sequence that adds
a new protocol.
QoS Operation
In this screen section, set a Quality of Service working method. Check
parameter 'Set Priority' or 'Set DSCP' (refer to the descriptions below).
Set Priority
Check this check box to add a priority to the rule; the screen 'Edit Service'
opens, allowing you to select between one of eight priority levels, 0 =
lowest and 7 = highest (each priority level is mapped to low/medium/high
priority). This sets the priority of a packet on the connection matching the
rule, while routing the packet.
