MP-20x Telephone Adapter 88 Document #: LTRT-50609
User's Manual
9.1 General Tab
The General tab allows you to change the name of your wireless network and allows you
to enable or disable the wireless connection. In addition, this screen displays various
statistics such as download and upload rate, as well as other informative parameters such
as whether encryption is enabled or disabled. These parameters can be configured in the
rest of the screen's tabs.

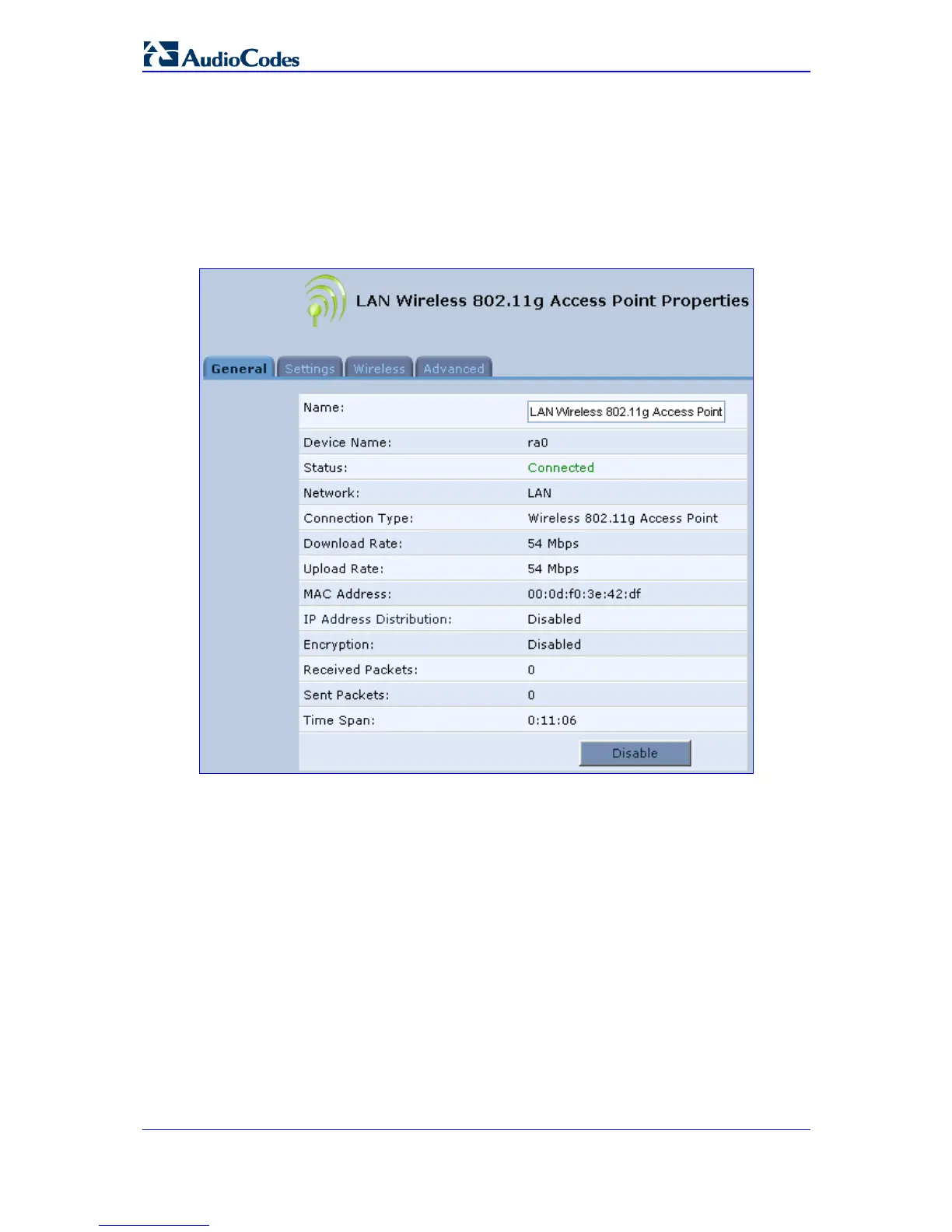

Figure 9-2: 'LAN Wireless 802.11g Access Point Properties - General' Screen
¾ To activate the wireless connection:
Click the Enable button; the screen refreshes and the 'Status' field changes to
"Connected".
