Version 3.0.1 133 July 2010
MP-20x Telephone Adapter 11. VLAN and Bridge Settings
11.1.5.1.3 Changing the Routing Mode and Adding a Static Route
¾ To change the routing mode:
1. (For all VoIP packets needing to be transferred within the VoIP VLAN) Open menu
Network Connections > WAN Ethernet VLAN 100 > Settings; the figure shown
below opens.

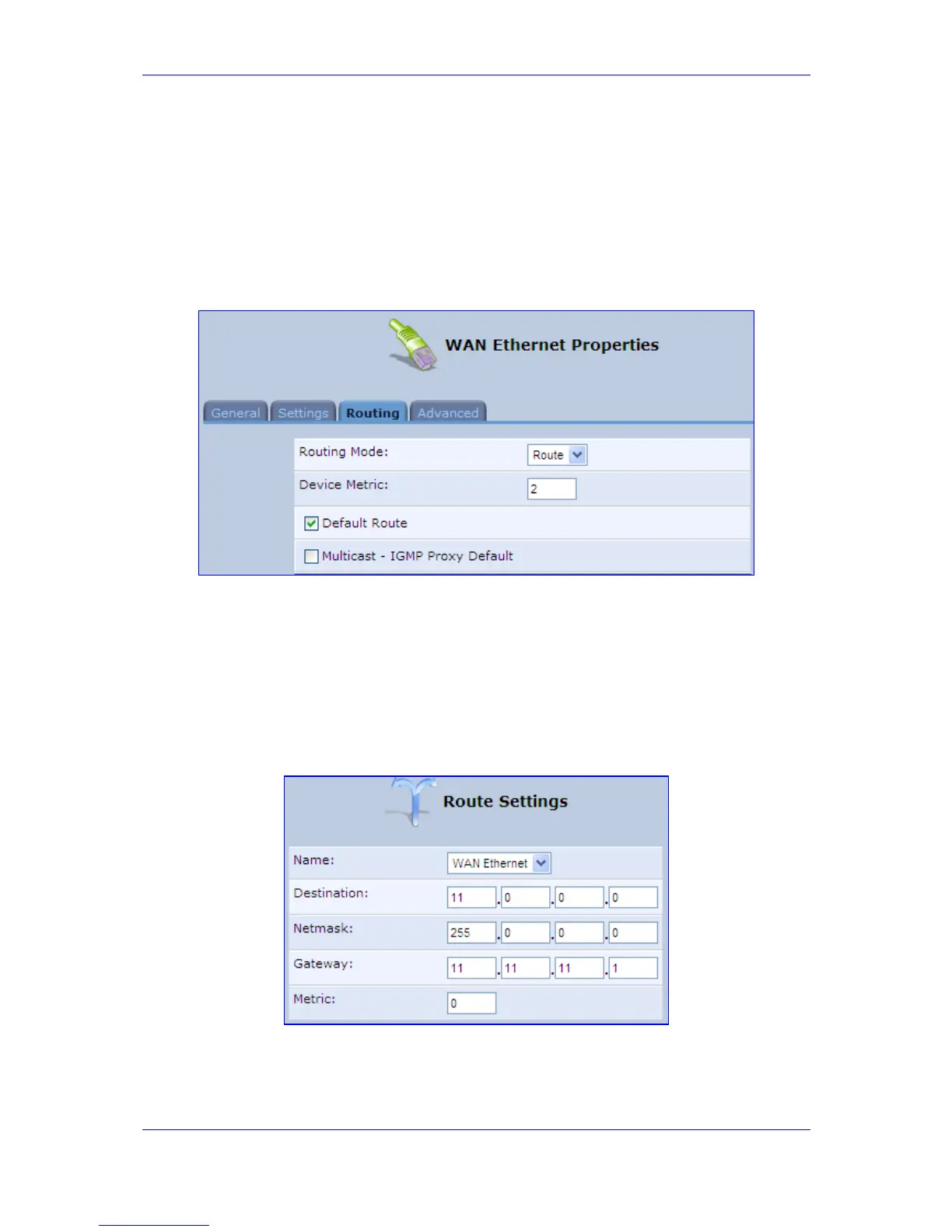

Figure 11-16: Routing
2. Configure parameter 'Routing Mode' (NAT or Route). Choose 'Route' and check the
check box 'Default Route' to use the VoIP VLAN.
3. Configure 'Device Metric' to be the lower than the default metric (default = 3).
¾ To add a static route:
1. Under the Routing tab, in the Routing table, click New Route.
Figure 11-17: Route Settings
2. From the 'Name' drop-down list, choose 'WAN Ethernet'; configure the parameters
Destination, Netmask and Gateway.
