4. Select whether to configure an existing bridge (this option only appears if a bridge
exists) or to add a new one:
• Configure Existing Bridge: Select this option and then click Next; the screen
'Network Bridging' opens, allowing you to add new connections or remove
existing ones, by selecting or clearing their respective check boxes.

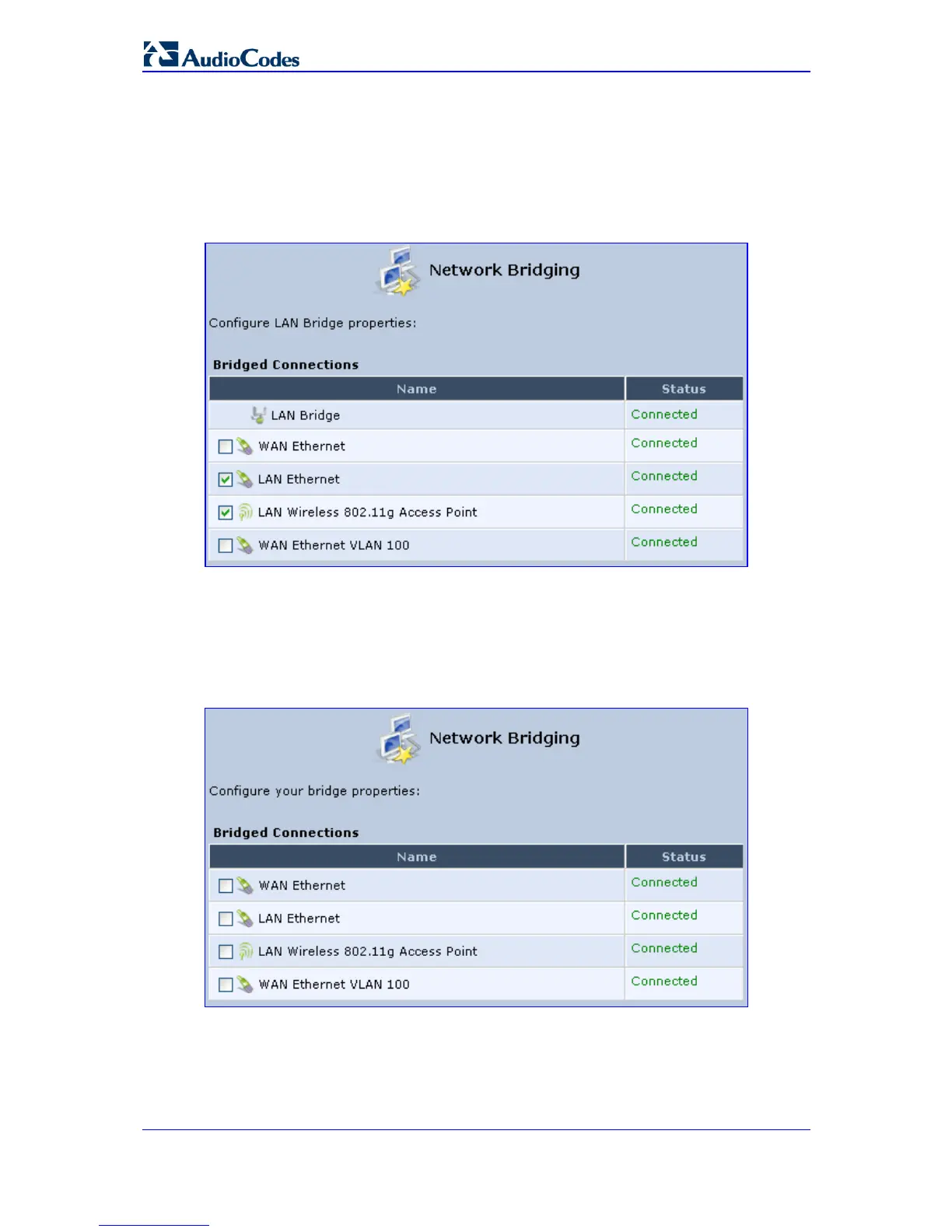

Figure 11-26: Network Bridging
For example, checking the WAN check box creates a LAN-WAN bridge.
• Add a New Bridge: Select this option and then click Next; a different 'Network
Bridging' screen opens, allowing you to add a bridge over the unbridged
connections, by selecting their respective check boxes.
Figure 11-27: WLAN-LAN - Network Bridging
