Version 3.0.1 135 July 2010
MP-20x Telephone Adapter 11. VLAN and Bridge Settings
11.1.5.1.5 Testing the 3-VLAN Setup
¾ To test the 3-VLAN setup:
1. Place a VOIP call. Verify that the VOIP is using 802.1q/p, that the VLAN ID is 300 and
that the IP is 3.3.x.x (refer to the screen shown below).

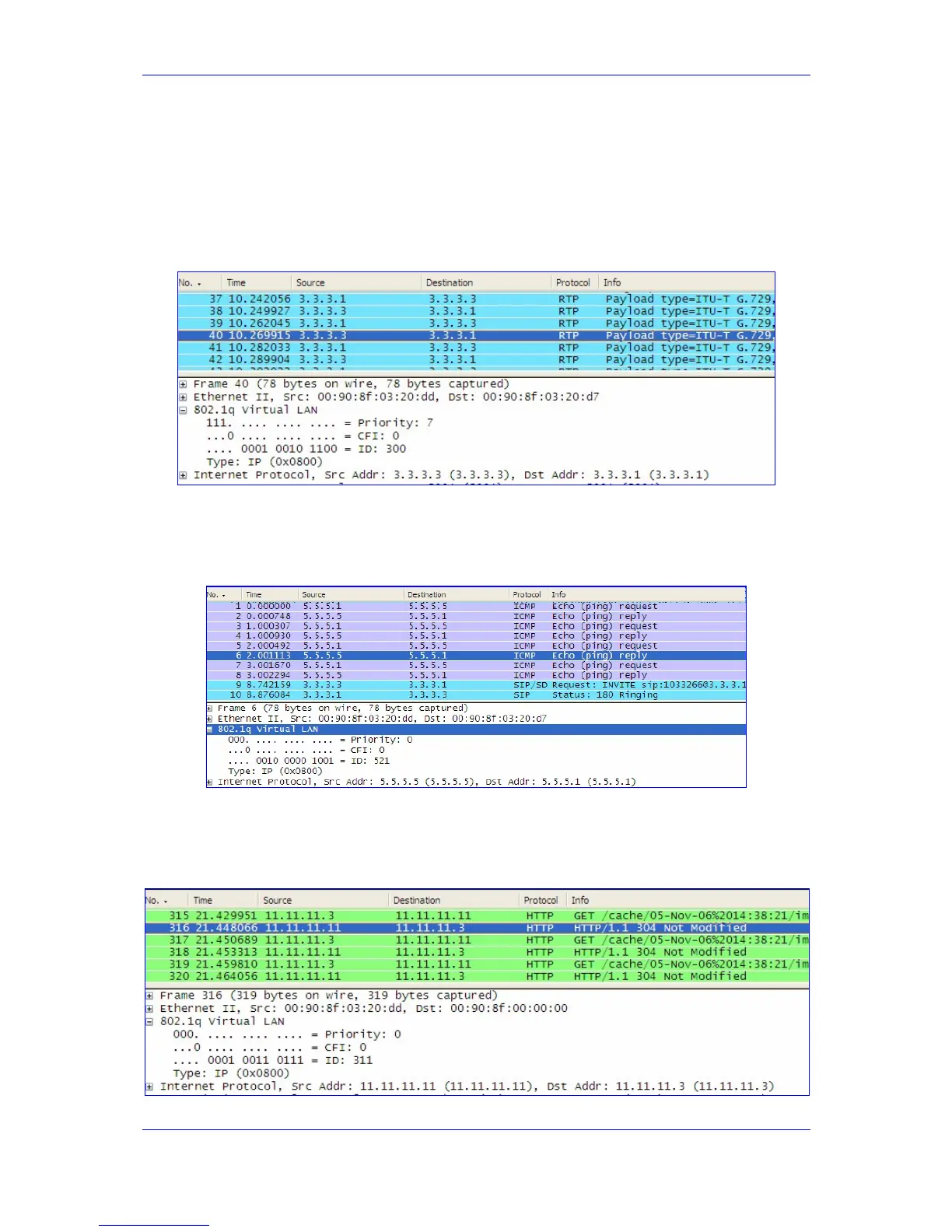

Figure 11-20: Testing the Setup
2. Connect a PC to the LAN port of MP202 (1 or 2) and send traffic (ICMP). Verify that
the ICMP traffic is tagged (802.1q) and that it is using VLAN 521.
Figure 11-21: Testing the Setup
3. Connect the management PC to VLAN 311 and verify that all management traffic is
carried in this VLAN.
Figure 11-22: Testing the Setup
