11.2.4.2 Example 2: Configuring Tagged VoIP, Untagged Data Traffic
This example explains how to configure MP-20x to tag VoIP traffic and untag data traffic in
bridge mode.

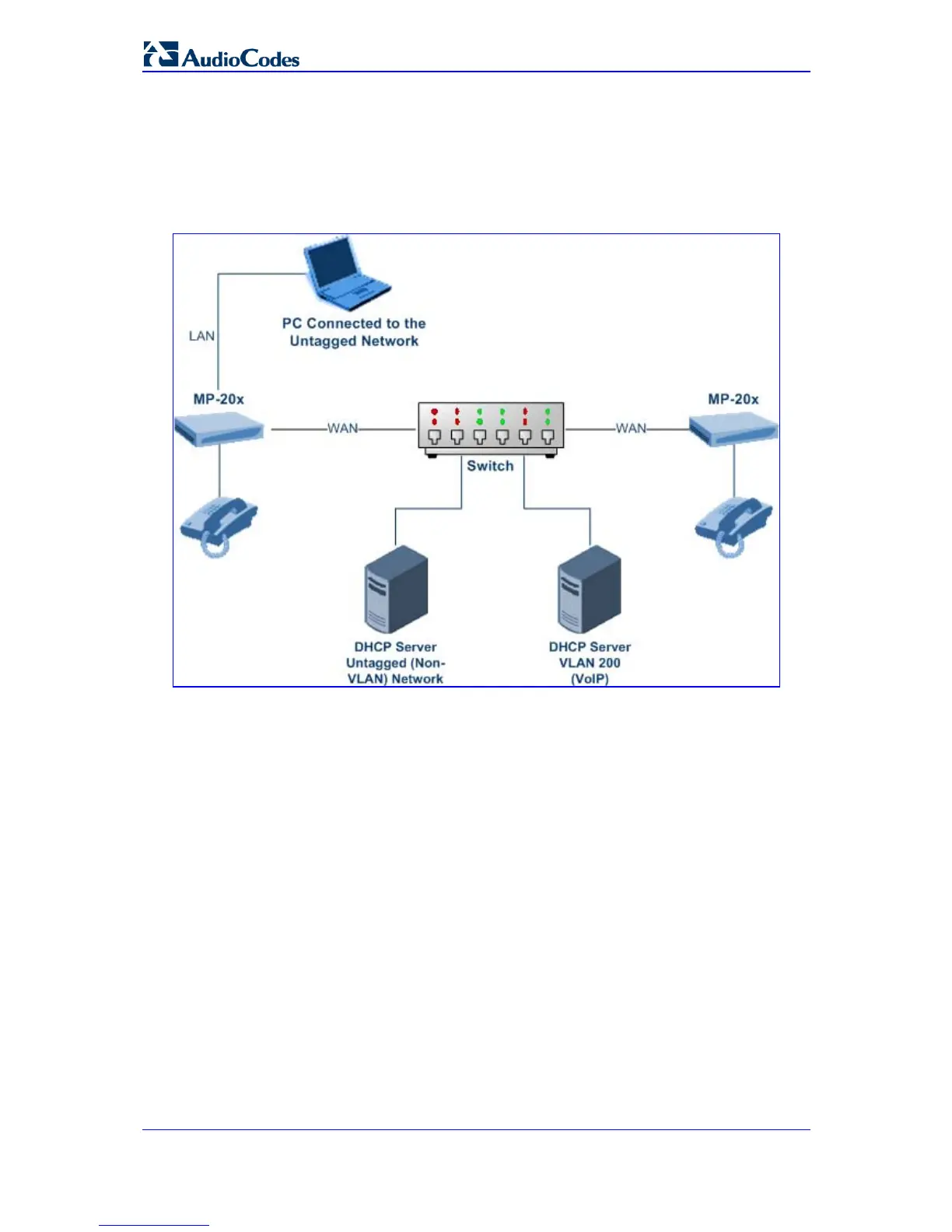

Figure 11-34: Example of Tagging Voice and Untagging Data
Setup
Two MP-20xs are connected to the switch. Both are configured to use VLAN 200 for VoIP
and non-VLAN traffic for data. Two DHCP servers are connected to the same switch. One
is in a VLAN 200 network; the other is in a non-VLAN network.
The procedure below describes the provedure for MP-20x (1) and MP-20x (2).
¾ To configure tagging for VoIP and untagging for data in bridge mode:
1. Connect the PC to the LAN NIC and use static IP address 192.168.2.2-254 for your
PC.
2. In Internet Explorer, browse to http://192.168.2.1.
3. Open menu Advanced > Remote Administration. Check the check boxes 'Using
Primary HTTP Port (80)' and 'Allow Incoming ICMP Echo Requests' (to allow HTTP
and ICMP from the WAN interface)
