Version 3.0.1 149 July 2010
MP-20x Telephone Adapter 11. VLAN and Bridge Settings

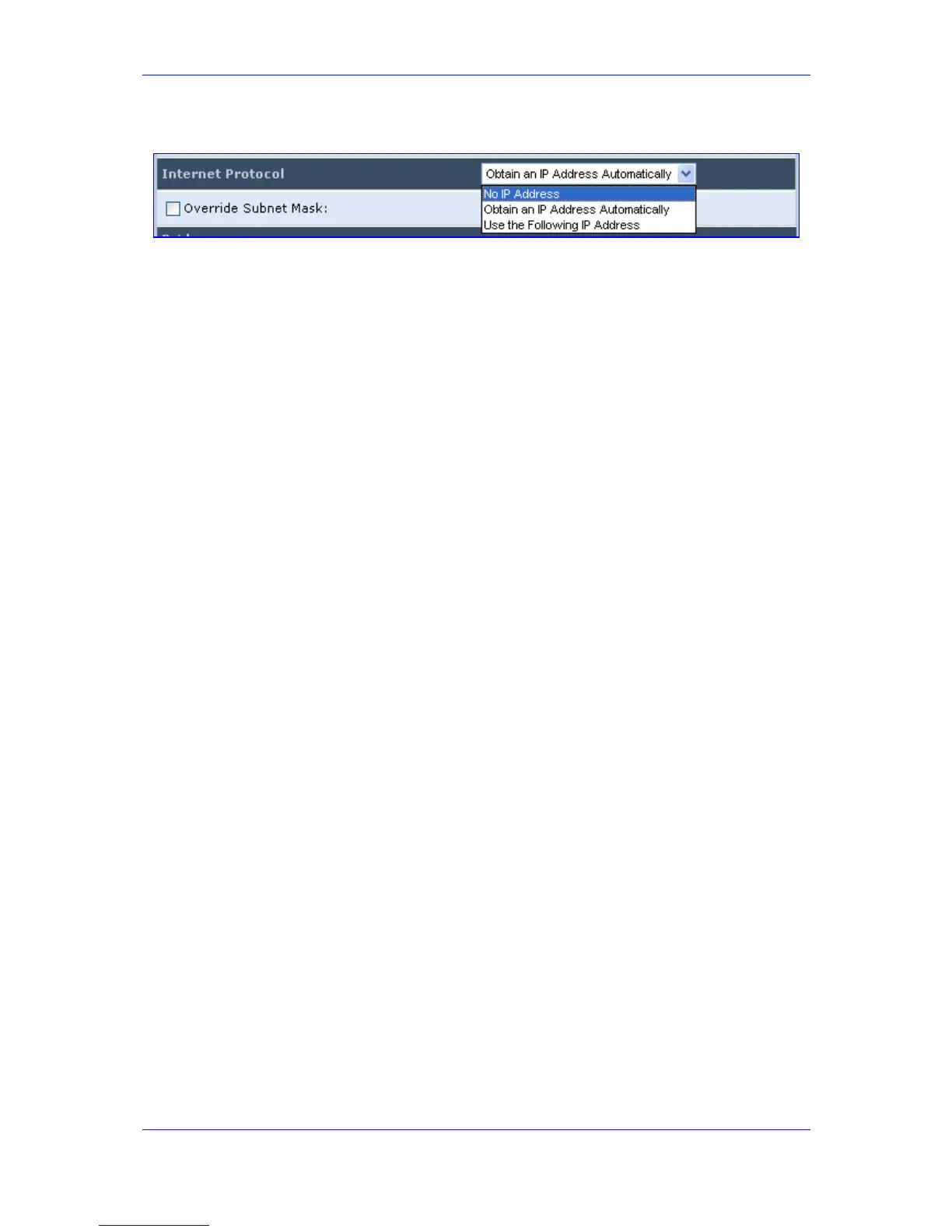

Figure 11-45: No IP Address
If your configuration is correct, all data from the LAN and VoIP should be sent in the same
VLAN.
