Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 105
8

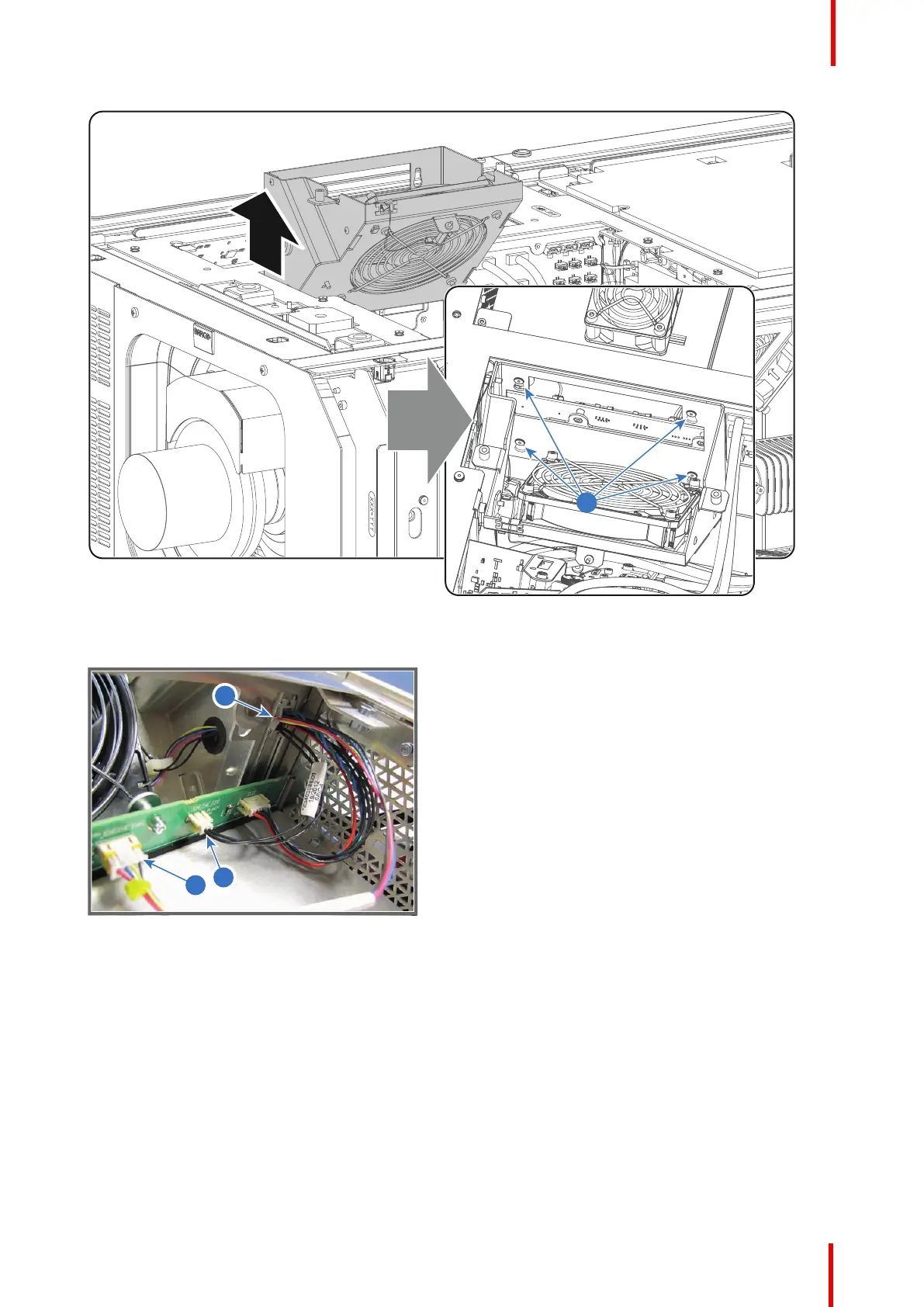

Image 9-15
3. Release both wires from the cable clamp at the side (reference 7 Image 9-16).
5
6
7
Image 9-16
4. Remove the fan from the assembly. Use a 3mm Allen wrench to release the four screws (reference 3 Image 9-
17). While remove the fan guide the wire through the grommet (reference 4Image 9-17).
