R5906848 /04 DP2K SLP Series106

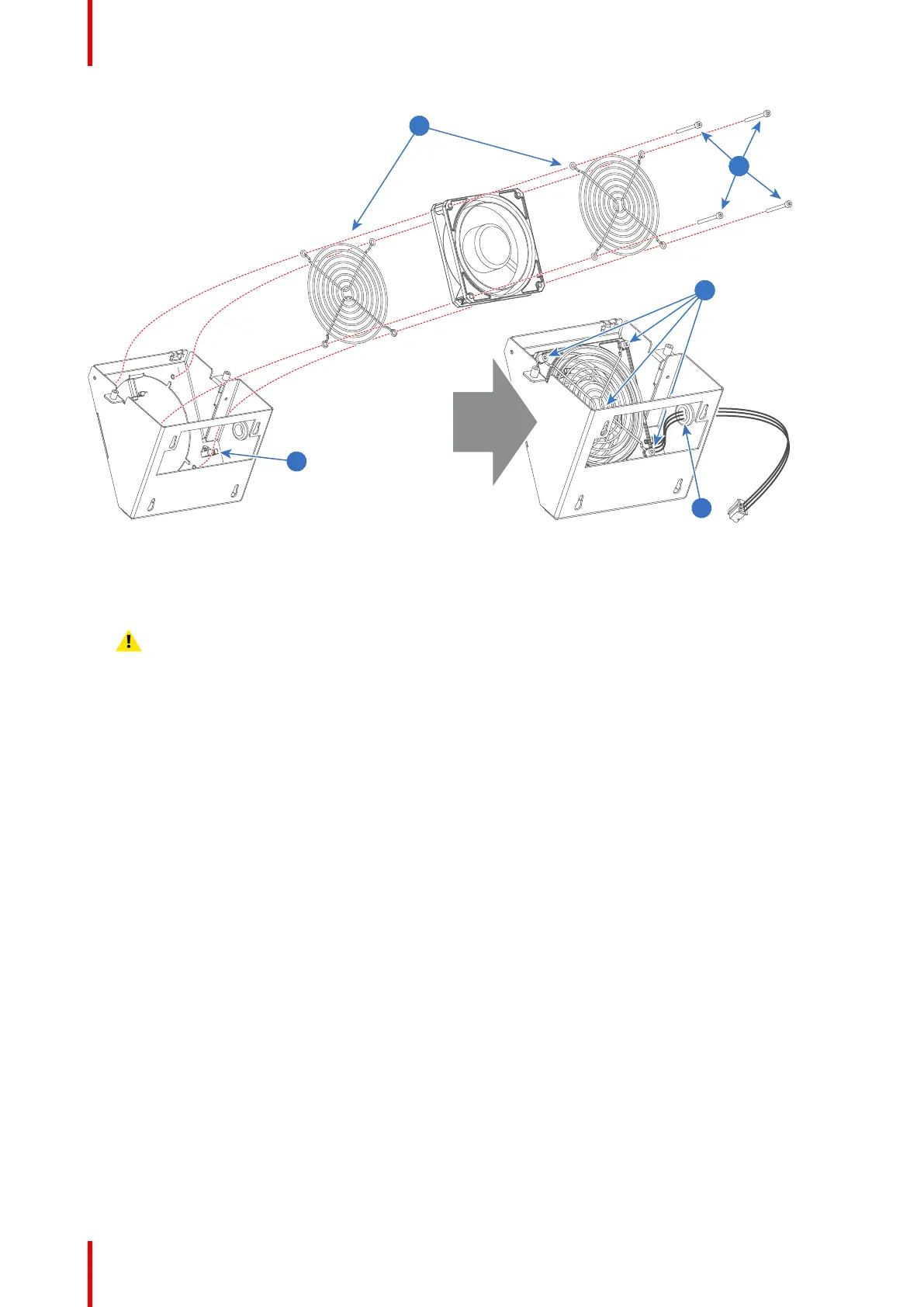

Image 9-17
5. Install the new fan. Guide the wire of the new fan through the grommet (reference 4Image 9-17) and ensure
that the wire is inserted in the cable clamp (reference 2Image 9-17). Use a 3mm Allen wrench to fasten the
four screws (reference 3Image 9-17).
Caution: Ensure that the airflow of the fan is towards the Light Processor.
6. Place the wire of the fan and the wire of the temperature sensor in the cable clamp (reference 7 Image 9-16).
7. Install the fan assembly. Ensure that the four mounting pins (reference 1 Image 9-18) of the fan assembly are
engaged.
Light Processor
To Next Page
