Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 131
Required tools
• 2.5mm Allen wrench.
• 5.5mm nut driver.
• Caliper.
• Clean cotton gloves.
How to replace the fixed Fold Mirror and the adjustable Fold Mirror?

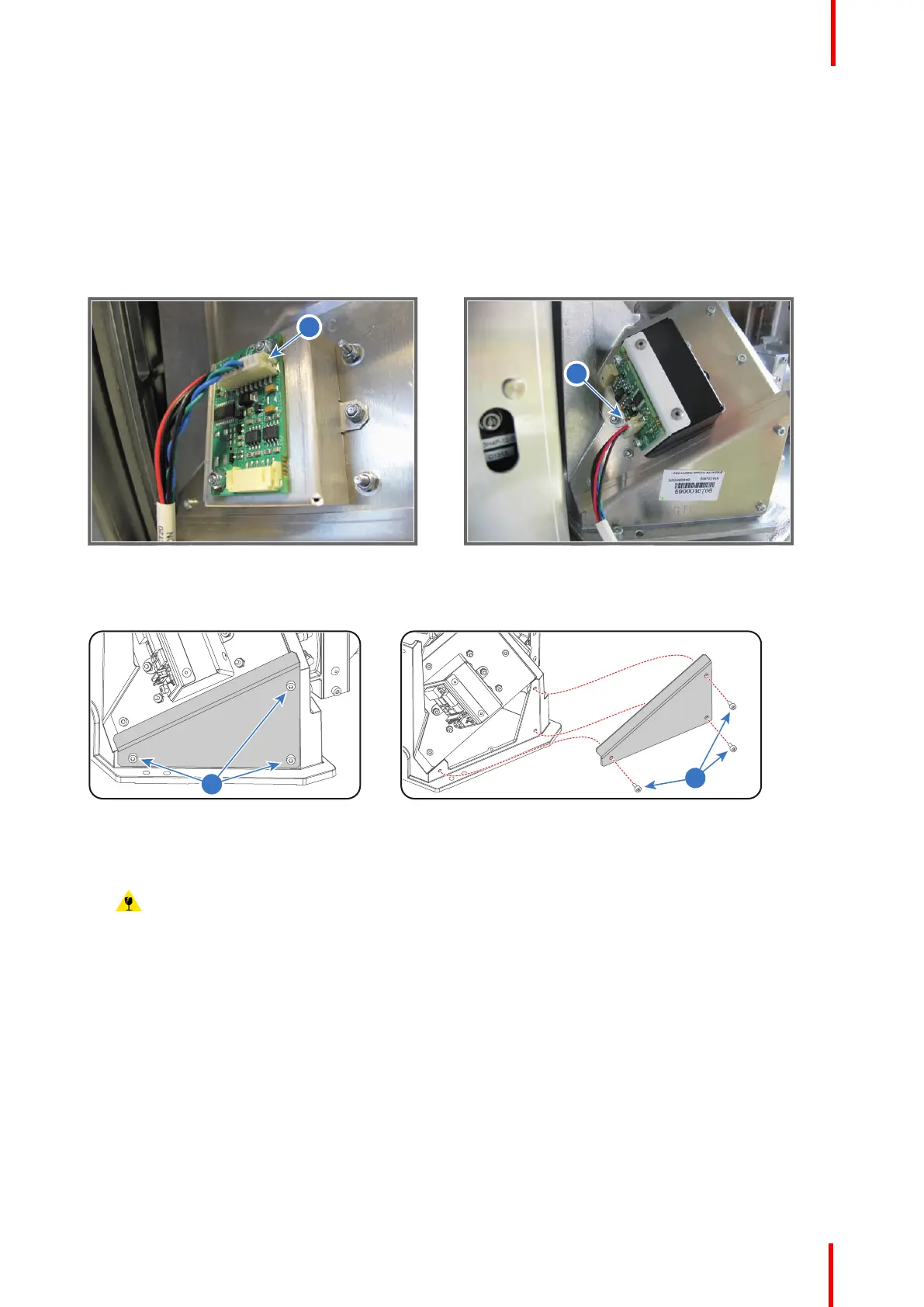

1. Disconnect the wire unit (reference 1 Image 10-23 or Image 10-24) of the Light Sensor module.
1
Image 10-23: Type “A” Light Sensor.
1
Image 10-24: Type “B” Light Sensor.
2. Remove the side cover plate from the Corner Block. Use a 2.5mm Allen wrench to loosen the three screws
(reference 1 Image 10-25).
1
1
Image 10-25
3. Carefully remove the Light Sensor assembly from the Corner Block. Use a 2.5mm Allen wrench to loosen the
four screws (reference 2 Image 10-26).
Caution: The adjustable Fold Mirror is attached on the bottom side of the assembly.
Light Pipe
