Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series132
2
2

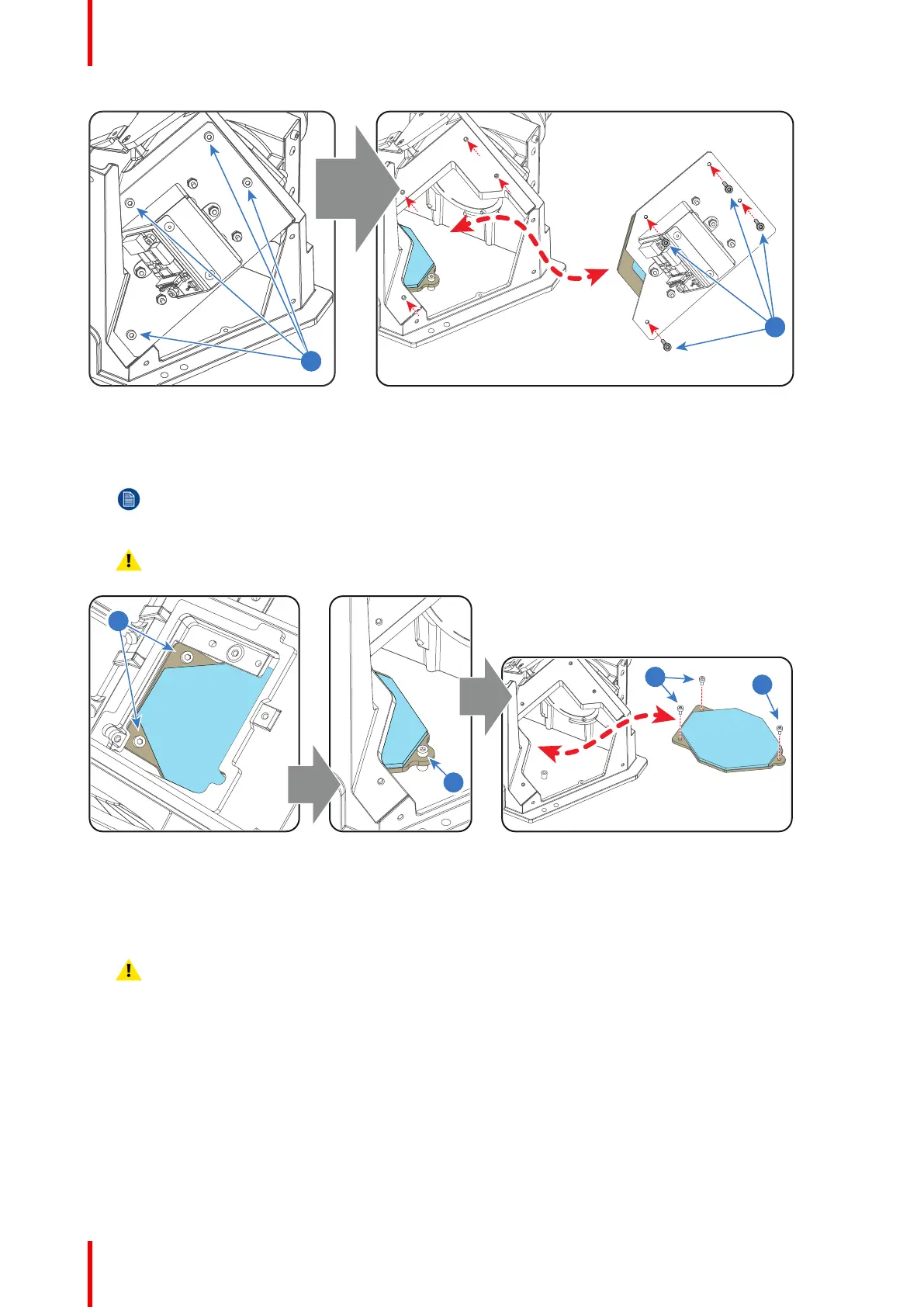

Image 10-26
4. Replace the fixed Fold Mirror at the base of the Corner Block. Use a 2.5mm Allen wrench to loosen the three
fixation screws (reference 3 & 4 Image 10-27).
Note: To access the two fixation screws with reference 3 in Image 10-27 the Light Processor and the
Light Pipe lens No4 have to be removed. This procedure assumes that these components are already
removed.
Caution: Do not touch the surface of the Fold Mirror. Use cotton gloves to handle the Fold Mirror.
Ensure that the Fold Mirror remains clean.
3
3
4
4
Image 10-27
5. Replace the adjustable Fold Mirror at the bottom of the Light Sensor assembly as illutrated. Use a 5.5mm nut
driver to loosen the three adjustment nuts (reference 5 Image 10-28). Reuse the three springs (reference 7
Image 10-28) and the three plain washers (reference 6 Image 10-28) on the threaded rods of the new
adjustable Fold Mirror.
Caution: Do not touch the surface of the Fold Mirror. Use cotton gloves to handle the Fold Mirror.
Ensure that the Fold Mirror remains clean.
Light Pipe
