Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series238
1
1
2
3
5
4

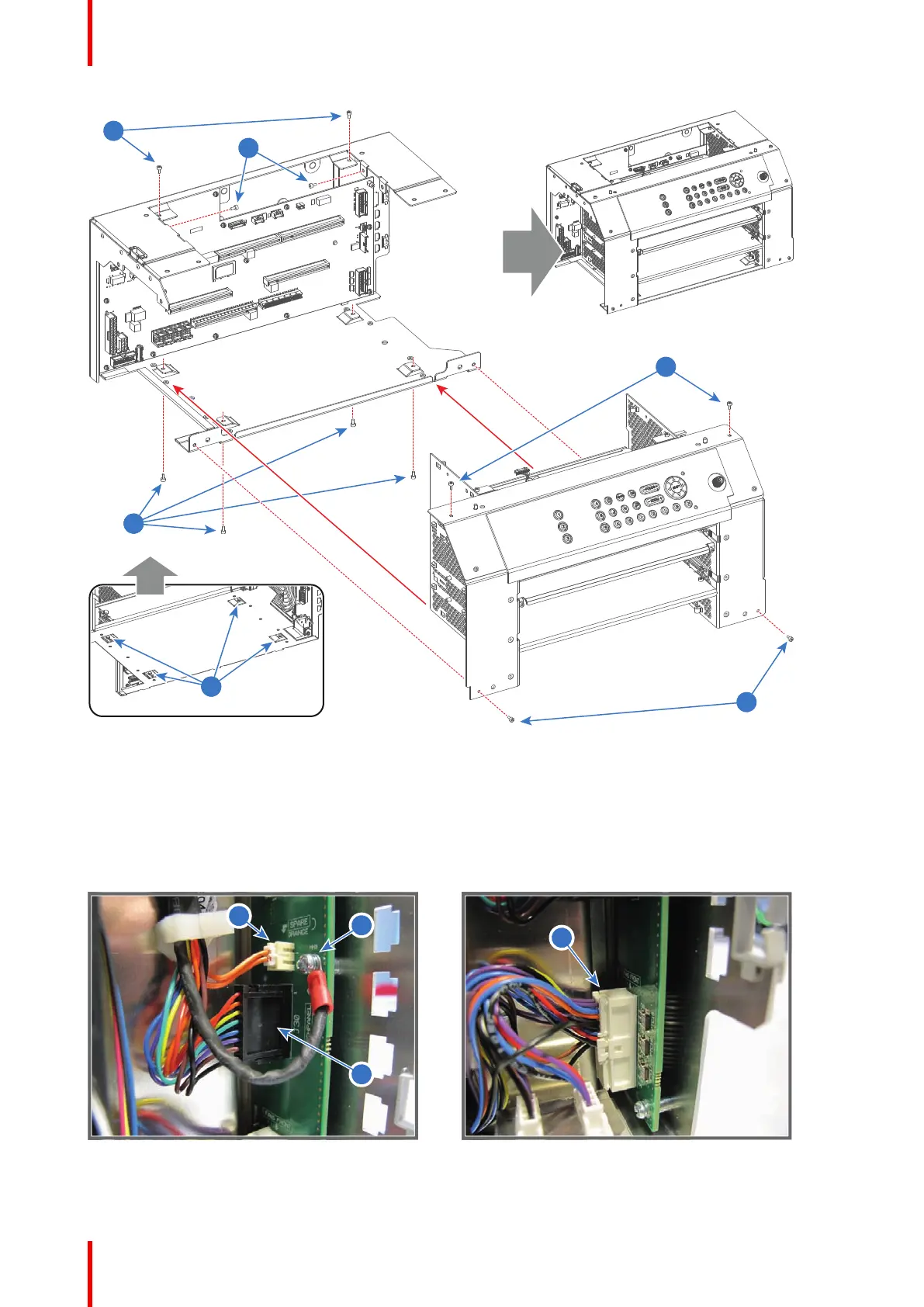

Image 18-44
4. Connect the touch panel wire (reference 13 Image 18-45) and the orange wire (reference 14 Image 18-45)
with the Signal Backplane.
5. Connect the black PE wire (reference 15 Image 18-45) with the Signal Backplane as illustrated. Use a T10
Torx screw driver.
6. Connect the wire plug of the front fans (reference 16 Image 18-45) with the Signal Backplane.
14
16
15
13
Image 18-45
Card Cage
