Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 319
7

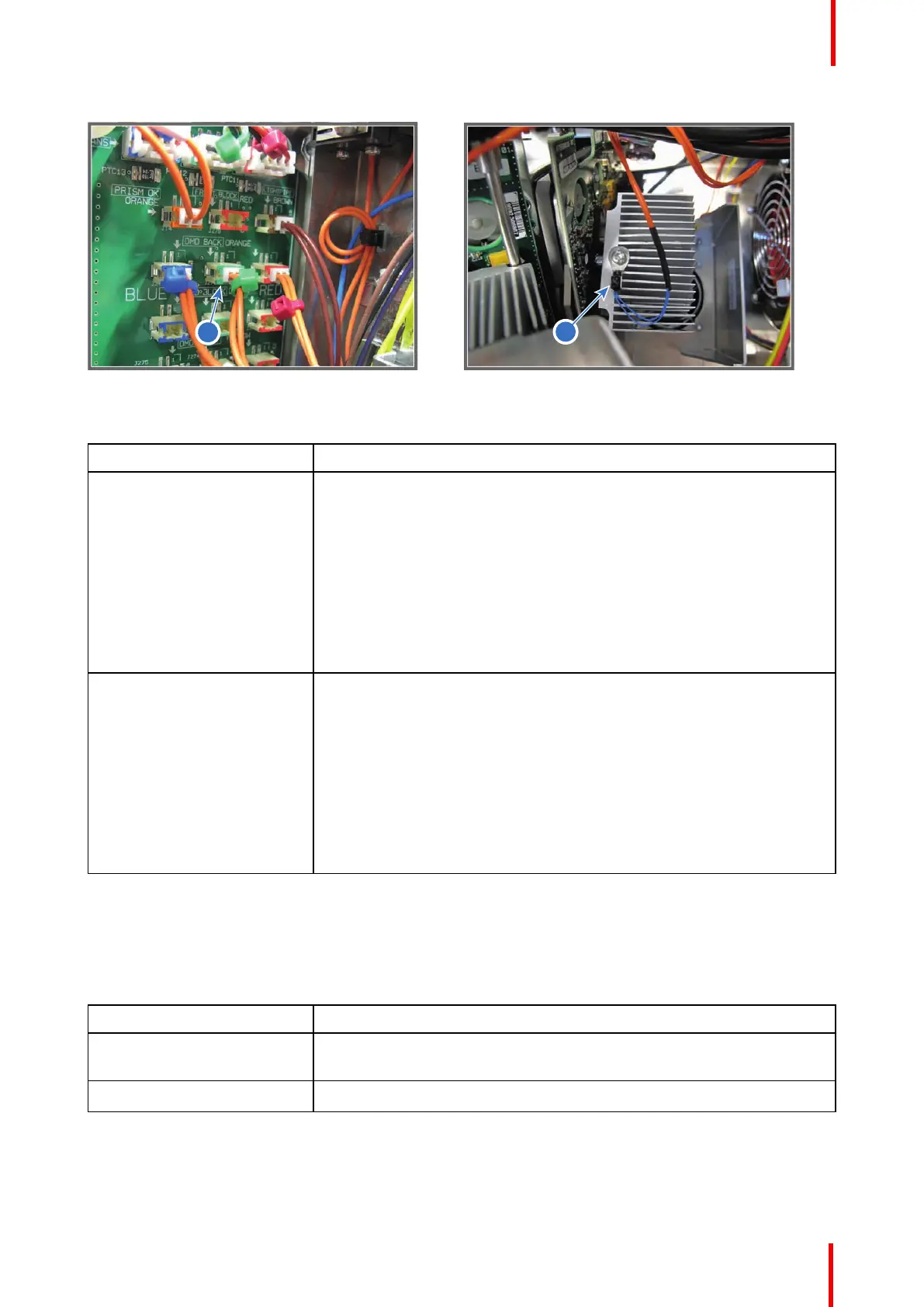

Image 25-58
17
Image 25-59
Code 5305: “DMD green - Temperature sensor short”
Situation Solution
Damaged wire insulation of the
temperature sensor which
measures the heat sink
temperature of the green
channel. When disconnecting
the wire of the temperature
sensor from the Signal
Backplane (reference 7
Image 25-58) the error code is
changed to “dmd green -
temperature sensor open”.
1. Repair the insulation of the of the temperature sensor which measures
the heat sink temperature of the green channel (reference 17
Image 25-59) .
2. If not repairable, replace the temperature sensor and wiring.
Defect temperature sensor
(reference 17 Image 25-59)
which measures the heat sink
temperature of the green
channel. When disconnecting
the wire unit of the
temperature sensor from the
Signal Backplane (reference 7
Image 25-58 the error code is
changed to “dmd green -
temperature sensor open”.
Replace the temperature sensor (reference 17 Image 25-59) which
measures the heat sink temperature of the green channel.
Code 5310: “LLS ambient - temperature too high” (Error)
This error code is probably preceded by the warning code 5311 : “lls ambient- temperature high”. The same
troubleshooting table can be applied.
Code 5311: “LLS ambient - temperature high” (Warning)
Situation Solution
Ambient temperature too high. Check the ambient temperature at the air inlets of the projector. Make sure
that the ambient temperature does not exceed 35°C (95°F).
Blocked filters. Check the projector filters. Clean filthy filters or replace with new ones.
Troubleshooting
