Code 5807: “TI-ICP - read system status failed”
The Barco controller can not read the status of the ICP.
Situation Solution
Malfunction software. Reboot the projector.
ICP board is not correctly
seated.
Reseat the ICP board. See service manual chapter “Replacement of the
ICP board”, page 214.
ICP board is not correctly
inserted
Insert the ICP board properly. See service manual chapter “Replacement
of the ICP board”, page 214.
ICP crash. The most left LED
is not blinking
Restart the projector.
ICP is being upgrading Wait until projector reset after the upgrade.
Code 5812: “TI-ICP - read satellite info failed”
Situation Solution
Malfunction software. Reboot the projector.
ICP board is not correctly
seated.
Reseat the ICP board. See service manual chapter “Replacement of the
ICP board”, page 214.
One of the wire units of the
Satellite boards on the Light
Processor is not correctly
connected with the Signal
Backplane.
Check if all data wires of the Satellite boards are connected with the Signal
Backplane (reference 3 Image 25-65). For detail instructions see service
manual chapter “Installing the Light Processor”, page 100.
One or more of the data wires
are disconnected from the
Satellite boards of the Light
Processor.
Check the data connections on the Satellite boards of the Light Processor.
See Image 25-66 for the Satellite board of the RED channel.
See Image 25-67 for the Satellite board of the GREEN channel.
See Image 25-68 for the Satellite board of the BLUE channel.
Note: The wires are marked with cable ties in the same color as the
channel color. The wires with reference 4, 5 & 6 are marked with two cable
ties.
Note: To access the three wires on the RED Satellite board the Light
Processor has to be removed from the projector.
3

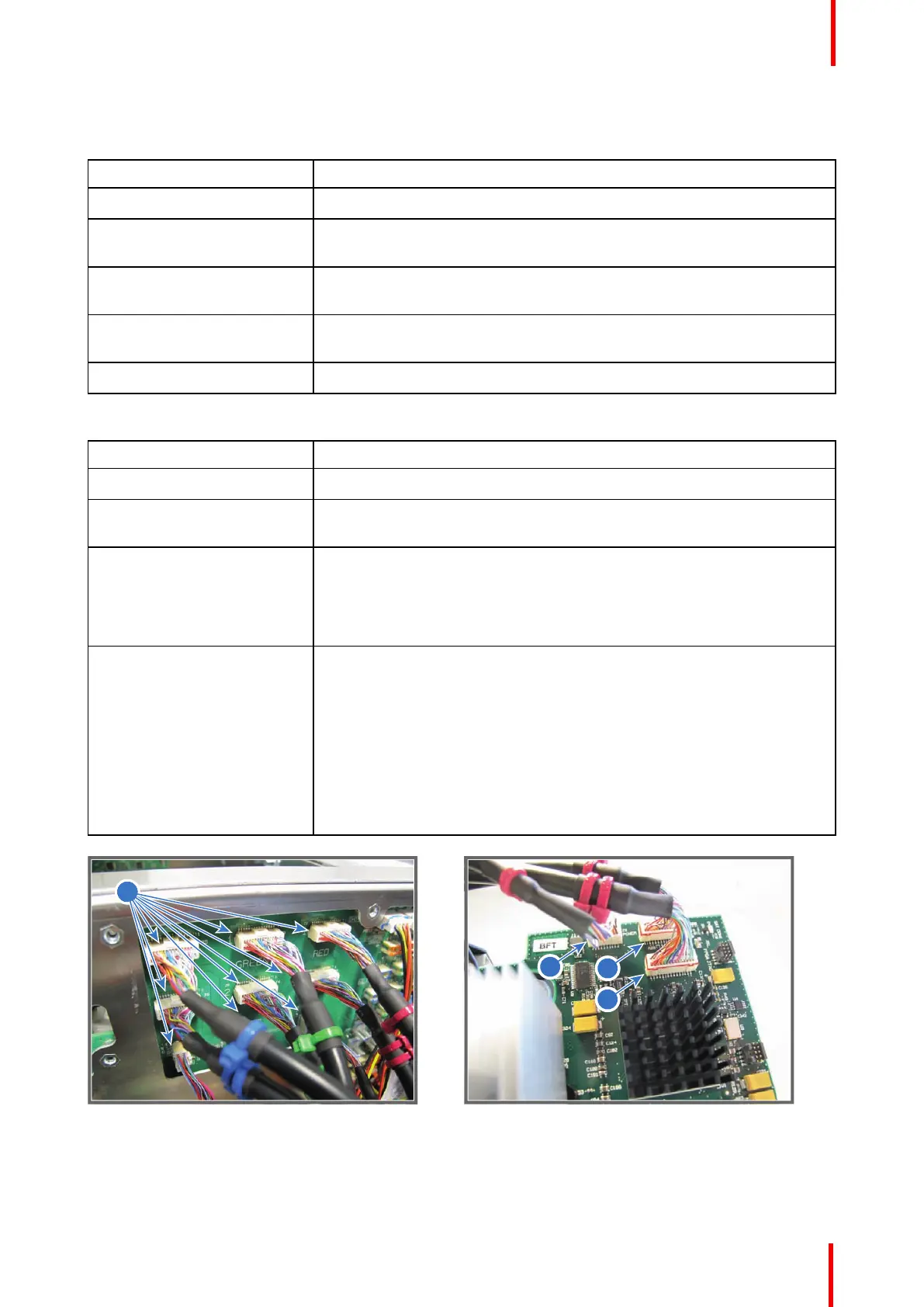

Image 25-65
6
9
3
Image 25-66
