Belarus 820 - Page 173

80-0000010B OM
173

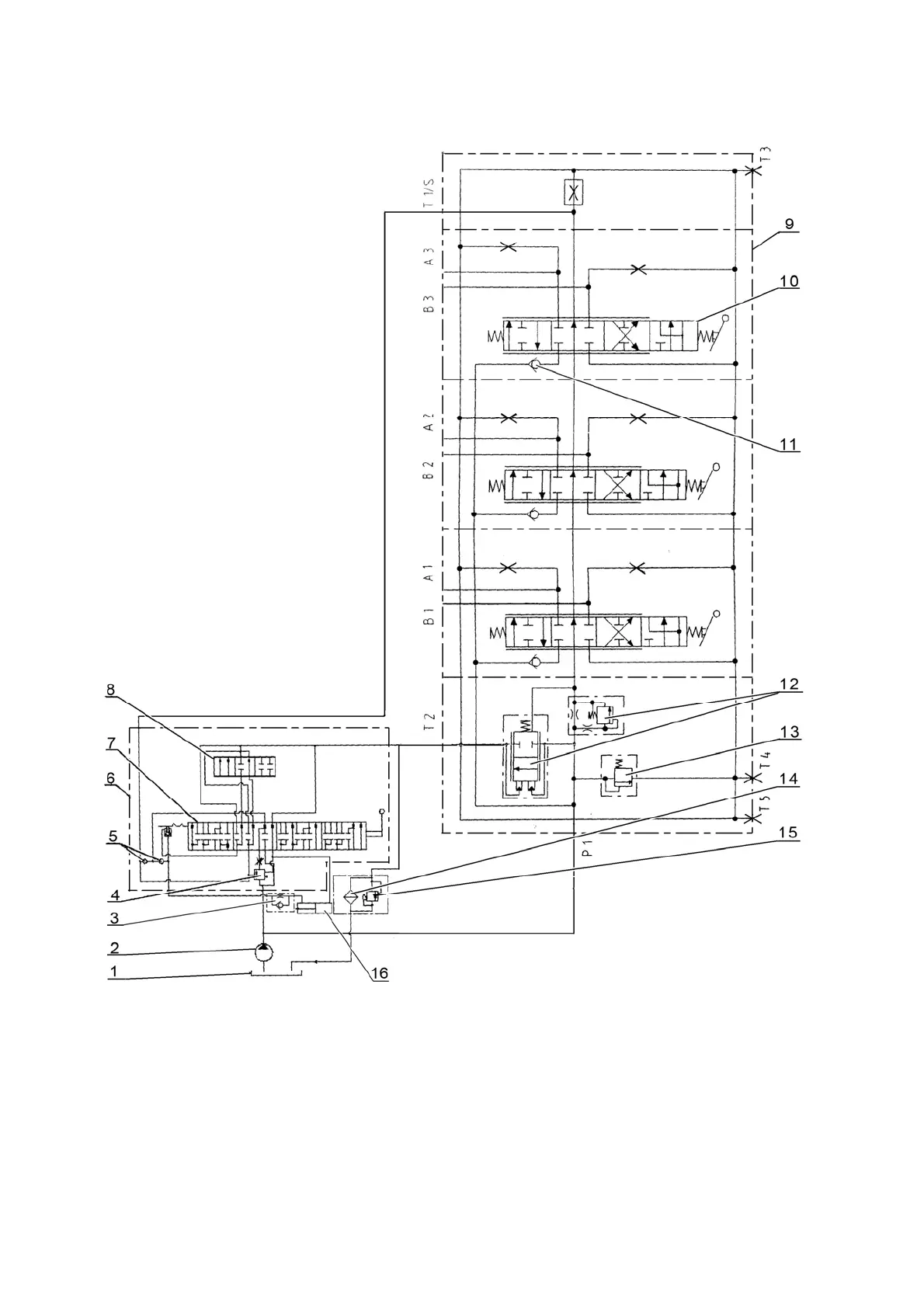

HLL hydraulic circuit diagram with the distributor RS-213 BELARUS installed is
shown in figure 3.15.5.
1 – tank; 2 – pump; 3 – retarding valve; 4 – priority valve; 5 – back-flow valve;
6 – draft (position) control; 7 – sleeve; 8 – spool; 9 – distributor RS-213 BELARUS;
10 – spool; 11 – back-flow valve; 12 – by-pass valve; 13 – safety valve; 14 – filter of
the hydraulic system; 15 – filter valve; 16 - cylinder.
Figure 3.15.5 – HLL hydraulic circuit diagram with the distributor RS-213 BELARUS in-
stalled.
