Power unit The FireClass200 is available in two models: FC200/S - with 27.6 V - 2.5 A
Switching power supply (see fig. 3a); FC200 - with 27.6 V - 4 A Linear
power supply (see fig. 3b).
PART DESCRIPTION
24 Rivet to secure switching power supply
25 Power supply protection fuse: a) F3.15A 250V; b) F 2A 250V
26 Terminal board for Mains power connection
27 Fine adjustment trimmer for output voltage
28 Power supply output for devices operating at 24 V (27.6 V)
29 Connector for power supply to the main board
30 Switching-power-supply output voltage signal
31 Screws to secure Switching power supply

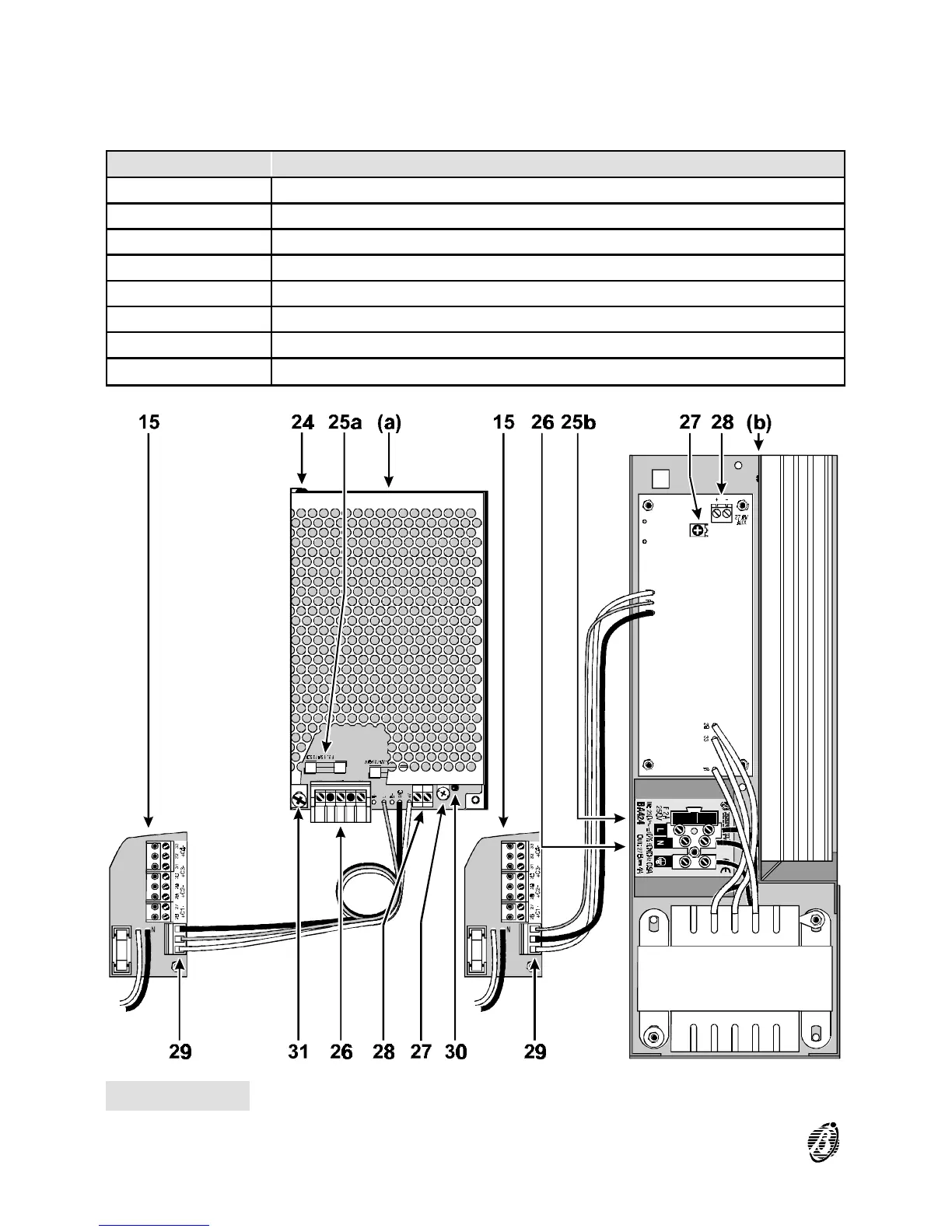

Figure 4 Parts of the Power Supply Unit
16 Analogue Fire Control Panel FireClass200
