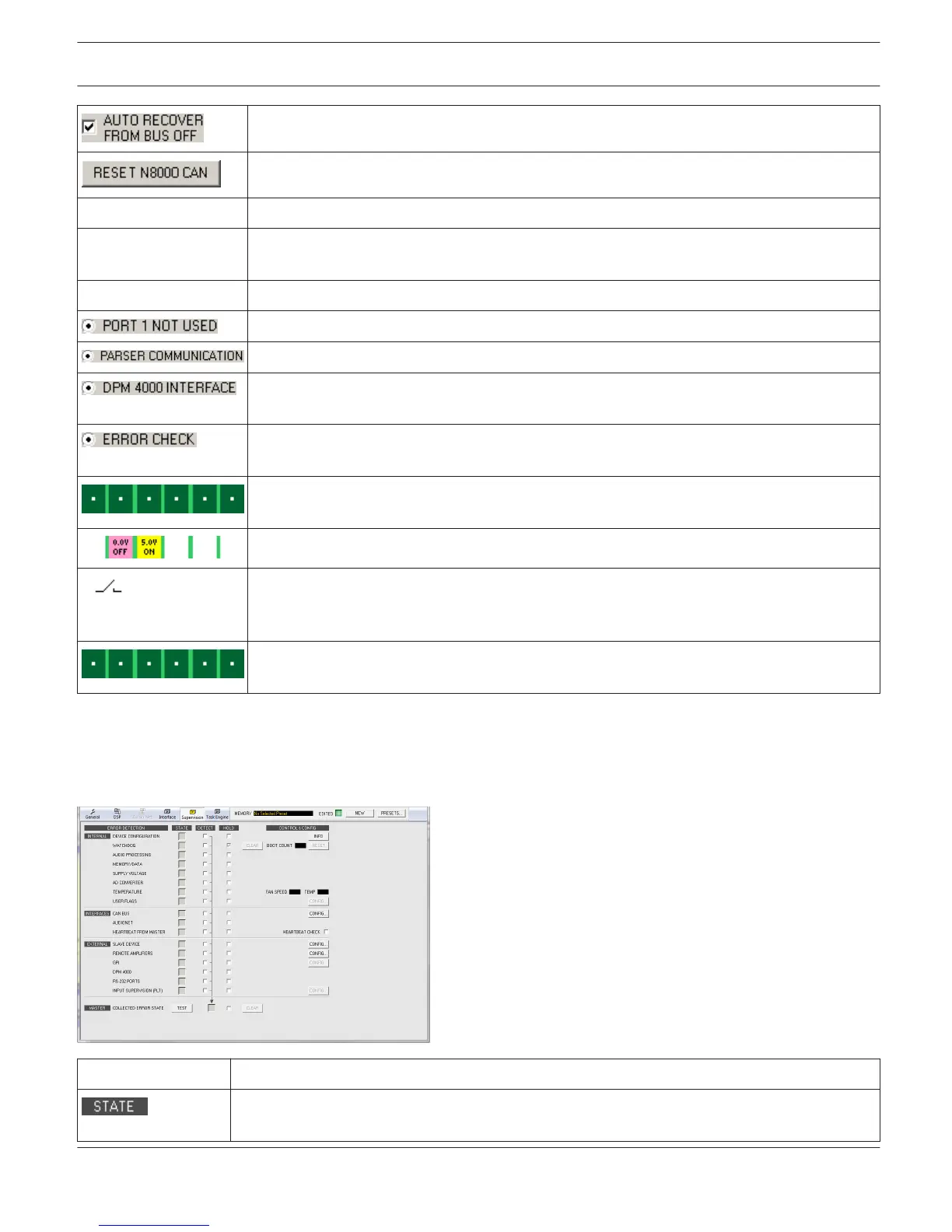

Option to automatically recover data transfer on the CAN-Bus after a Bus Off Condition.
Resetting and reestablishing the connection between P 64 and CAN-Bus.
BAUD RATE RS-232 transmission rate.
DATA/PARITTY/
STOPBITS
Data transmission parameter settings for data bit, parity bit and stop bit.
HANDSHAKE Handshake settings.
The RS-232 port is deactivated.
Accessing the P 64’s ASCII Control Protocol is possible via RS-232 interface.
Configuring the RS-232 port to act as PROMATRIX/PROANNOUNCE DPM 4000 interface. The
Config button opens a window for further configuration.
Monitoring an external device via RS-232. The Config button opens a window for further
configuration.
Clicking with the right mouse button on the corresponding symbol of a control input
provides opens the configuration dialog of this control input. (not yet activated)
Displays the control inputs’ current condition.
It is possible to manually change the condition of the control outputs (Opener or Shutter).
Depending on their according configuration, control outputs are only switched as long as
the mouse button is pressed.
Clicking with the right mouse button on the corresponding symbol of a control output
provides opens the configuration dialog of this control output. (not yet activated)
Supervision Dialog
The Supervision window shows the condition of the P 64. When on-line, all fault conditions are being indicated. It is
possible to select for each type of error whether it is displayed in a collected fault message, buffered and/or included
in the fault protocol. Further details can be set and are being displayed in the corresponding Config and Info dialogs.
Element Description
The current condition of each type of error gets indicated. Green means no error, red indicates
that an error has been detected.
IRIS-Net DIGITAL MATRIX | en 354
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
