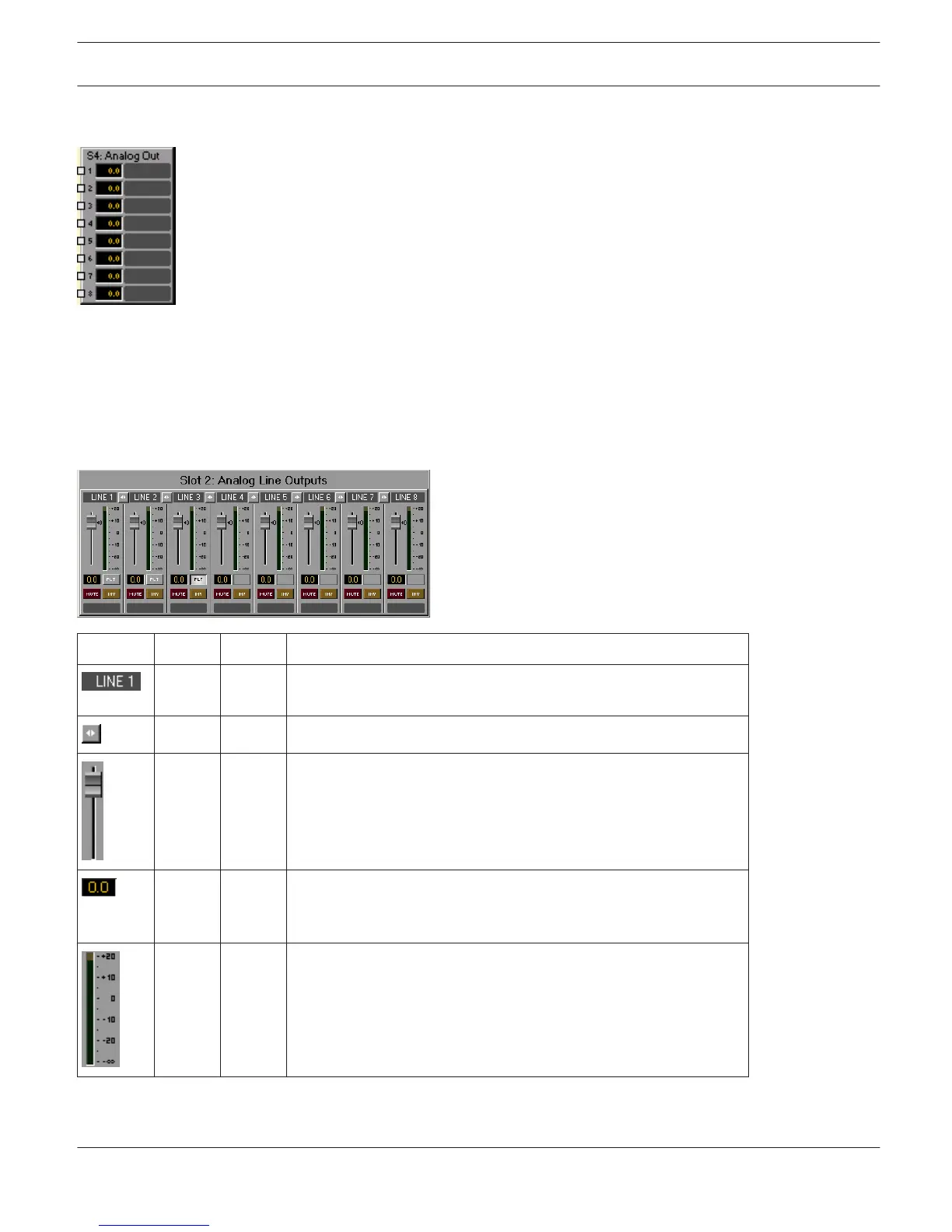

ANALOG LINE OUTPUTS
The DSP block Analog Line Outputs provides access to the eight outputs of an AO-1 Analog Output
Card. Establishing independent settings for each output channel is possible. A fader with ramping function as well as
Mute and Invert buttons serve as controls. Each output channel has its individual level indicator. Adjacent channels can
be linked together using the LINK button. This allows for the convenient synchronous setting of several output
channels, e.g. for stereo signals.
Each output channel has a pilot tone generator, which, when activated, allows permanent monitoring of the output and
the connecting audio cable to an external audio device (e.g. amplifier) that has pilot detection. Activating and
configuring the pilot tone signal is only possible in off-line mode from the Advanced Control window.
Element
Default Range Description
Permanent channel labeling. Channels are numbered from LINE 1
to LINE 8.
LINK button for linking (grouping) adjacent output channels.
0.0 dB -80...+1
8.0 dB
Fader for setting the output level. The Ramping Time that controls
the fader’s ramping can be set in the Advanced Control window.
0.0 dB -80...+1
8.0 dB
The fader display shows the numerical value of the current fader
setting and additionally provides the possibility for entering a
desired value.
Indicates a channel’s current output level.
IRIS-Net DIGITAL MATRIX | en 375
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
