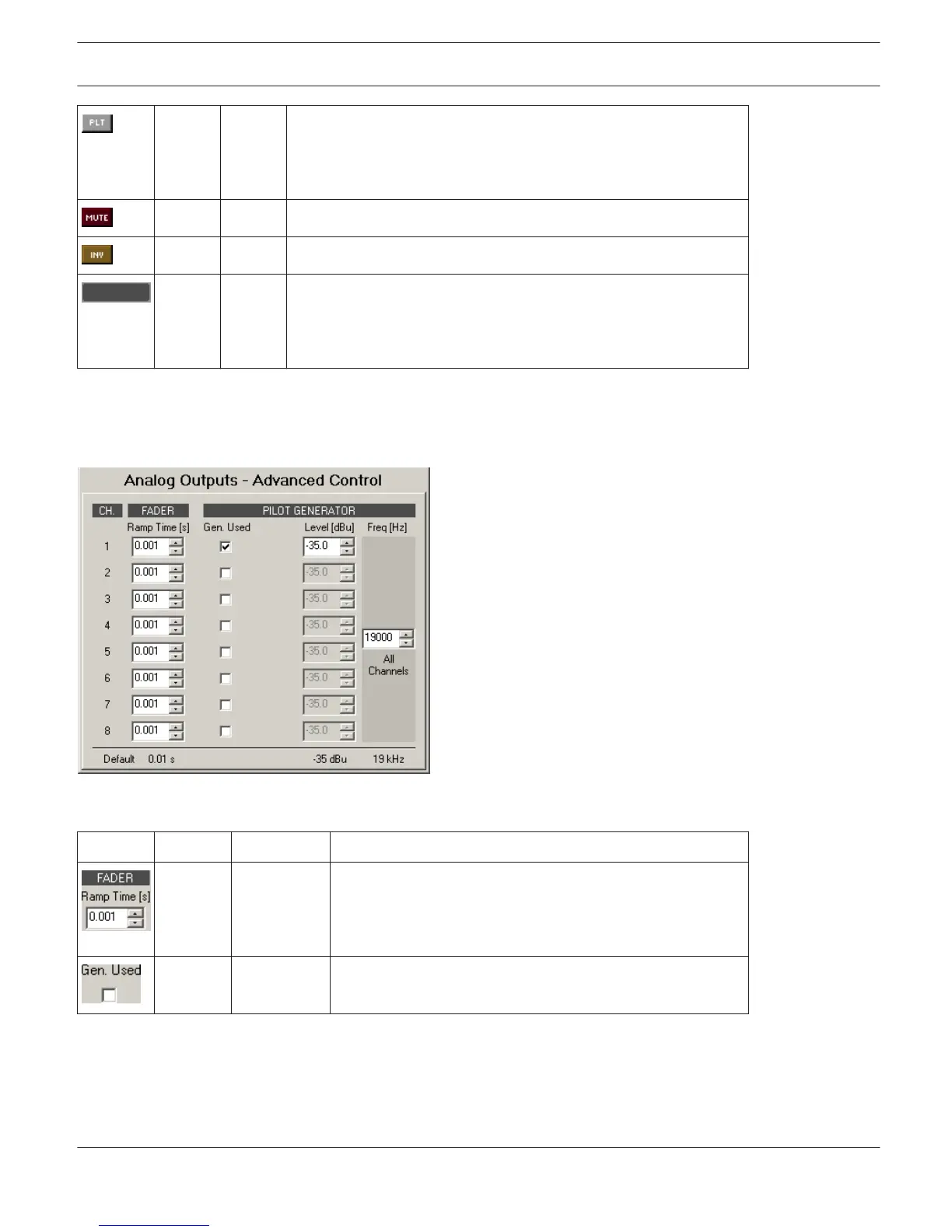

The PLT button activates (engaged) or deactivates (not engaged)
the pilot tone generator. The PLT button appears only when the
pilot tone generator has previously been activated in the Advanced
Control window.
MUTE button for muting the output signal.
INV button for inverting the output signal’s polarity.
Text field for labeling an output channel, e.g. giving it an
application specific name.
CAUTION: Using * (asterisk) and/or = (equal) signs in a name is
not permissible.
Click with the right mouse button on the DSP block and select Advanced Control from the pop-up context menu of the
Analog Output block to open the Advanced Control window.
The following settings can be established for each output channel of the Analog Output DSP block:
Element
Default Range Description
0.001 s 0.001...20 s A ramping time can be set for a channel’s fader. When
changing the signal level via Fader or Fader Display, within
the previously specified period of time, the new signal level
is set by means of the ramping function.
The checkbox activates the channel’s pilot tone generator.
HINT: Gen. Used can only be configured OFFLINE.
IRIS-Net DIGITAL MATRIX | en 376
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
