MATRIX ROUTER

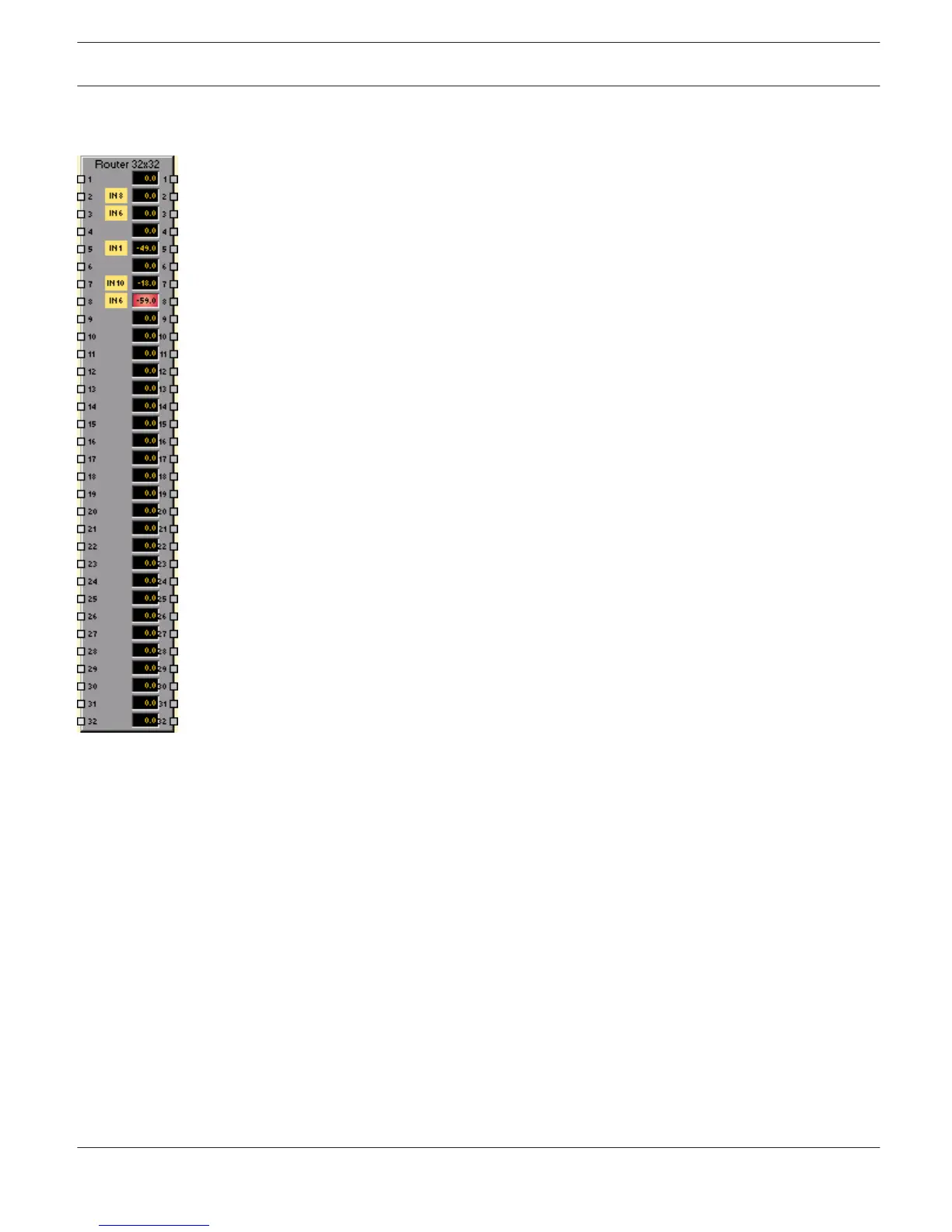

The DSP block Matrix Router allows connecting an output to only one
input. Left clicking the node in the matrix where the output channel’s
column and the input channel’s line meet with the mouse does connect
an output to an input. Again clicking onto the corresponding node
disconnects inputs and outputs.
Matrix Routers are subject to a restriction. Only one input can be connected to an output at a time. However,
connecting an input to various outputs is possible. A Matrix Router can distribute the signal of an input. Mixing input
signals is not possible. The notation I x O represents a matrix with I inputs and O outputs. The number of inputs (2 to
32) and outputs (2 to 32) can be selected when adding the DSP block to the configuration.
