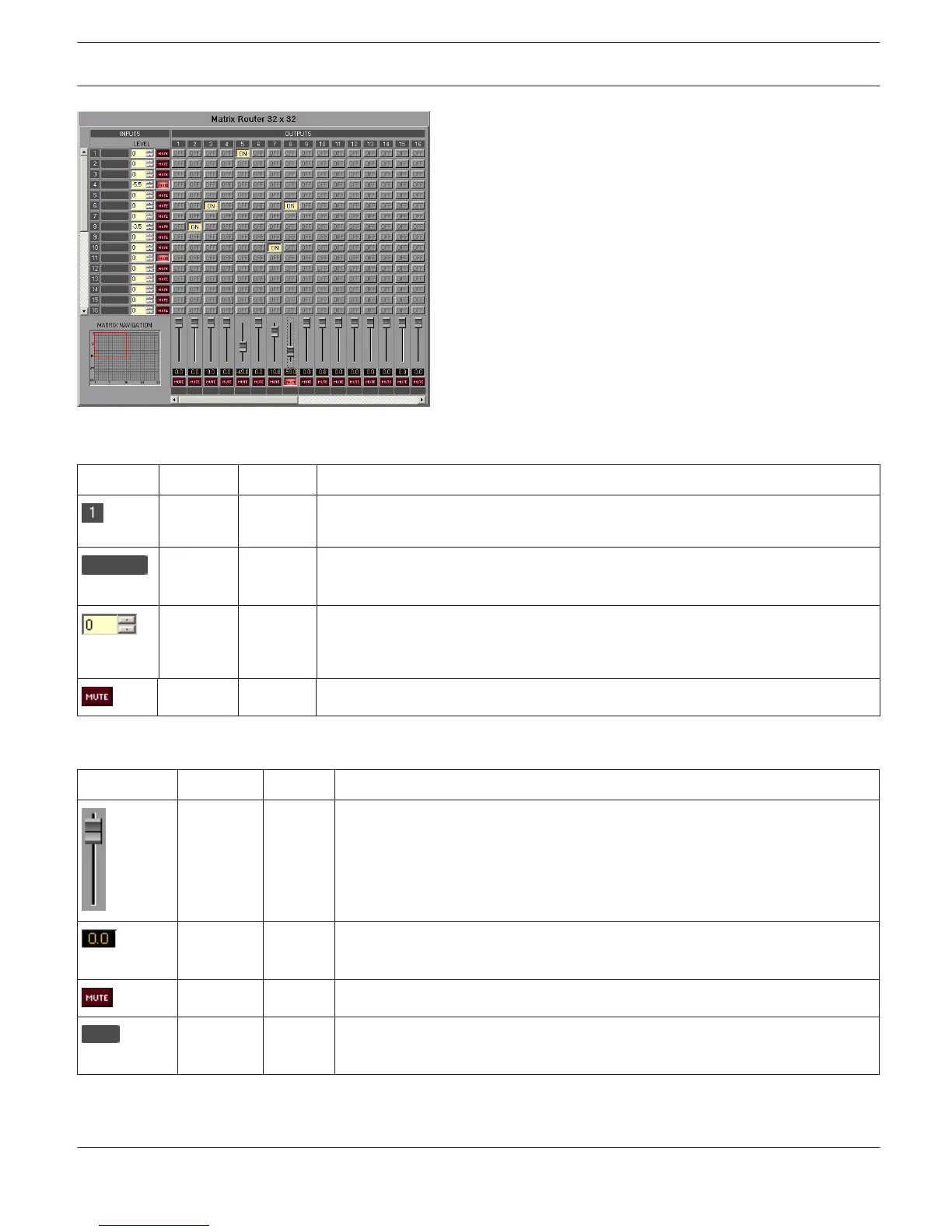

Inputs
Element
Default Range Description
Fixed channel labeling: channels of a matrix with the dimensions I x O are
numbered from 1 to I.
Text field for providing an input channel with an internal IRIS-Net name.
CAUTION: The use of * (asterisk) and = (equal) in names is not permissible.
0 dB -80...0 dB Setting the signal level of an input channel. Entering the desired value in dB is
possible.
HINT: Ramping is deactivated by default.
MUTE button mutes the input channel.
Outputs
Element
Default Range Description
0 dB -80...0
dB
Fader for setting the corresponding output channel’s level.
0 dB -80...0
dB
Fader Display. This field indicates the current fader setting as a numerical
value. Entering the desired value in dB is possible as well.
MUTE button mutes the output signal.
Text field for providing an output channel with an internal IRIS-Net name.
CAUTION: The use of * (asterisk) and = (equal) in names is not permissible.
