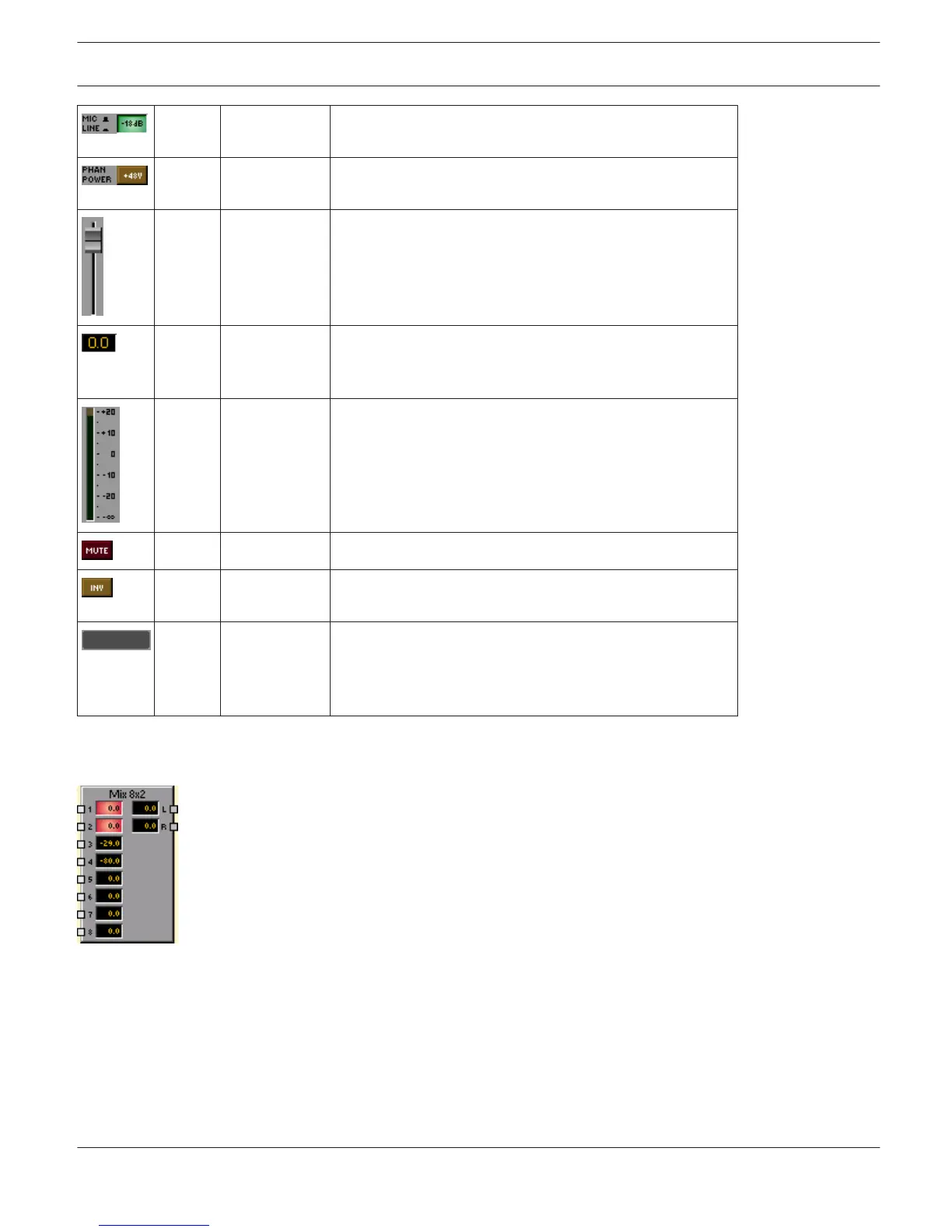

The -18dB button (PAD) is for switching between
microphone and line input sensitivity.
The +48V button is for activating phantom power whenever
a suitable condenser microphone is being used.
0.0 dB -80...+18.0 dB Fader for setting the input level.
0.0 dB -80...+18.0 dB The fader display shows the numerical value of the current
fader setting and additionally allows entering a desired
value.
Indicates the input signal’s current level.
MUTE button for muting the input signal.
INV button for inverting (180° phase shift) the input
signal’s polarity.
Text field for labeling an input channel with an exclusive
IRIS-Net name.
CAUTION: Using * (asterisk) or = (equal) signs in a name
is not permissible.
MIXER
The DSP block Mixer allows mixing various input signals to output them via a single output (mono) or
two outputs (stereo). Monaural and stereo mixers with 2, 4, 8, 16, 24 and 32 inputs are available.
