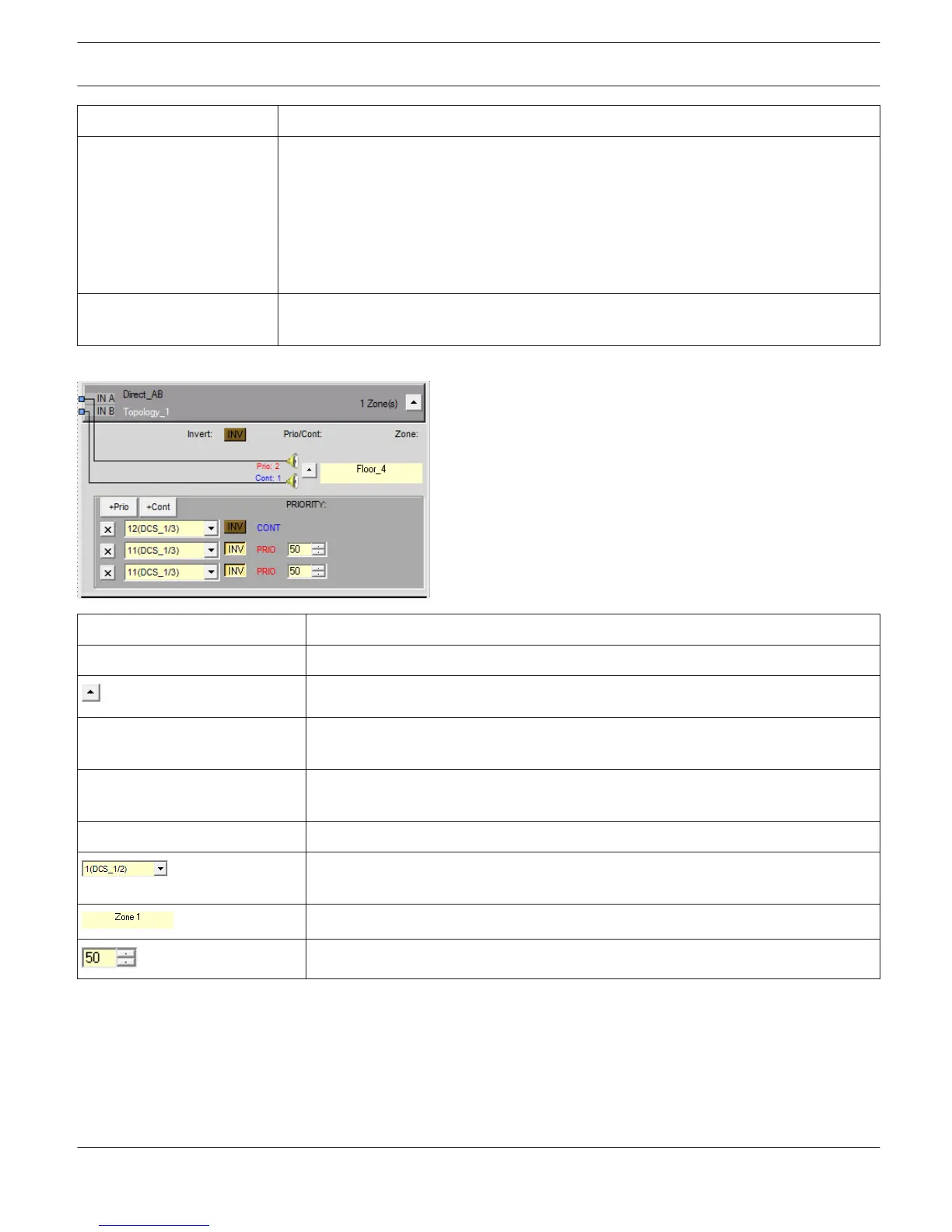

Element Description
First relay Number of the first relay to be assigned to first zone created in this topology. Relays are
automatically assigned to the subsequent Zones in ascending order starting from the
first relay.
Note: The Relay Name is given as “Relay No (Device_x/Channel or Slot)” with x as
number of the device. An example for making this numbering clearer is listed below.
If No Relay is selected as first relay, zones are created without assigning any physical
device relays to them. In this case the relays have to be assigned manually.
IN A or B Select the output channel of the amplifier to be used as input for part A or B of this
topology
Element
Description
INV Press the INV button to invert the status of all relays in the topology.
Press this button to minimize or maximize the zones or relays dialog.
+Prio Press this button to add a priority relays to the zone.
Note: Up to 5 priority relays can be configured in a zone.
+Cont Press this button to add a control relays to the zone.
Note: Up to 5 control relays can be configured in a zone.
X Press this button to delete the corresponding zone or relay.
This combo box lists all available relays of DCS or DPA devices in the PROMATRIX
8000 system.
Enter a name for the zone.
This control allows setting the priority value of a priority relay.
IRIS-Net
PROMATRIX 8000 | en 782
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
