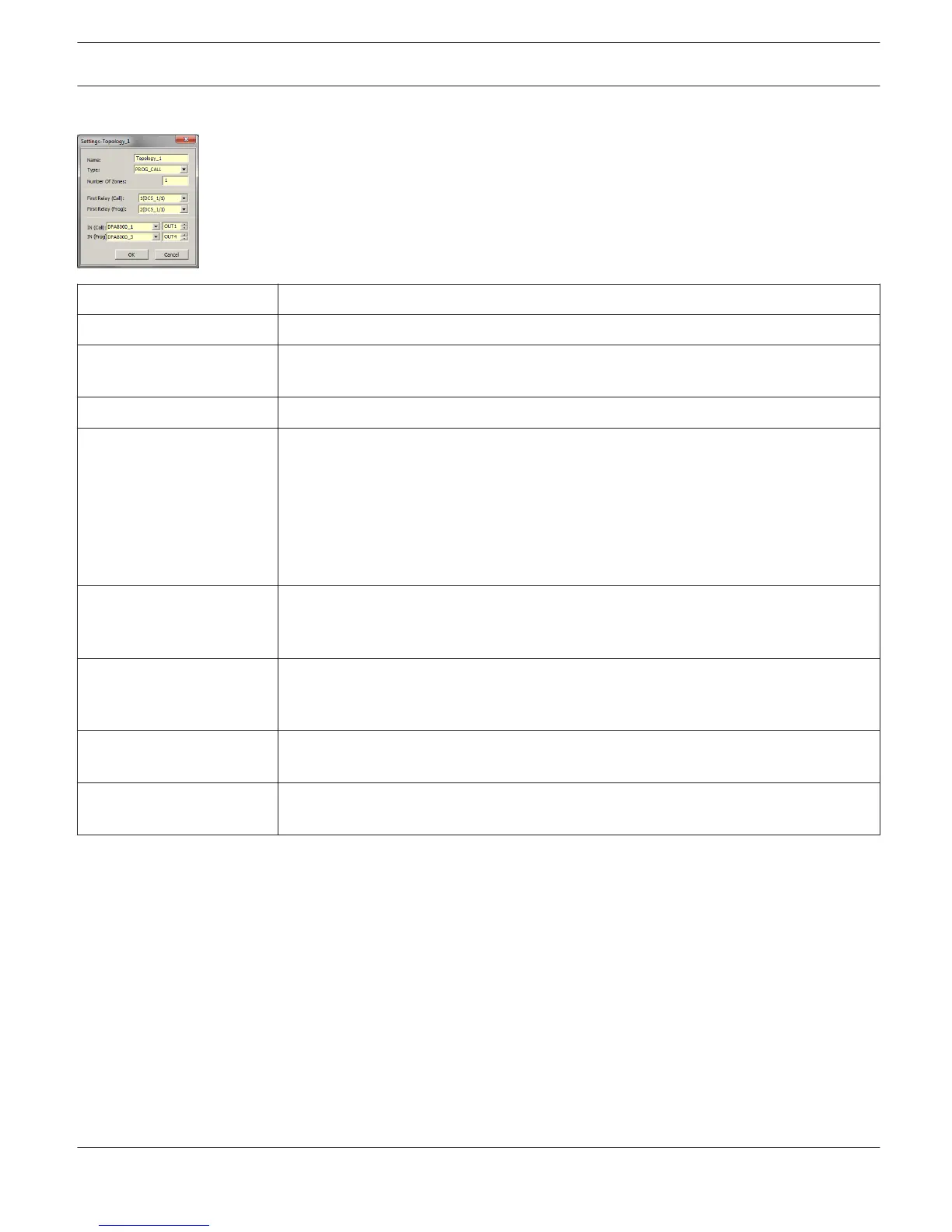

PROG CALL
Element Description
Name Name of topology
Type This combo box lists all type of topologies that can be created in the Promatrix 8000
system.
Number Of Zones Number of zones to be created in the selected topology.
First relay Number of the first relay to be assigned to first zone created in this topology. Relays are
automatically assigned to the subsequent Zones in ascending order starting from the
first relay.
Note: The Relay Name is given as “Relay No (Device_x/Channel or Slot)” with x as
number of the device. An example for making this numbering clearer is listed below.
If No Relay is selected as first relay, zones are created without assigning any physical
device relays to them. In this case the relays have to be assigned manually.
First Relay (Call) Number of the first relay to be assigned to first call line created in this topology. Relays
are automatically assigned to the subsequent Zones in ascending order starting from
the first relay.
First Relay (Prog) Number of the first relay to be assigned to first program line created in this topology.
Relays are automatically assigned to the subsequent Zones in ascending order starting
from the first relay.
IN (Call) Select the output channel of the amplifier to be used as input for the call line of this
topology
IN (Prog) Select the output channel of the amplifier to be used as input for the program line of
this topology
IRIS-Net
PROMATRIX 8000 | en 783
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
