Element Description

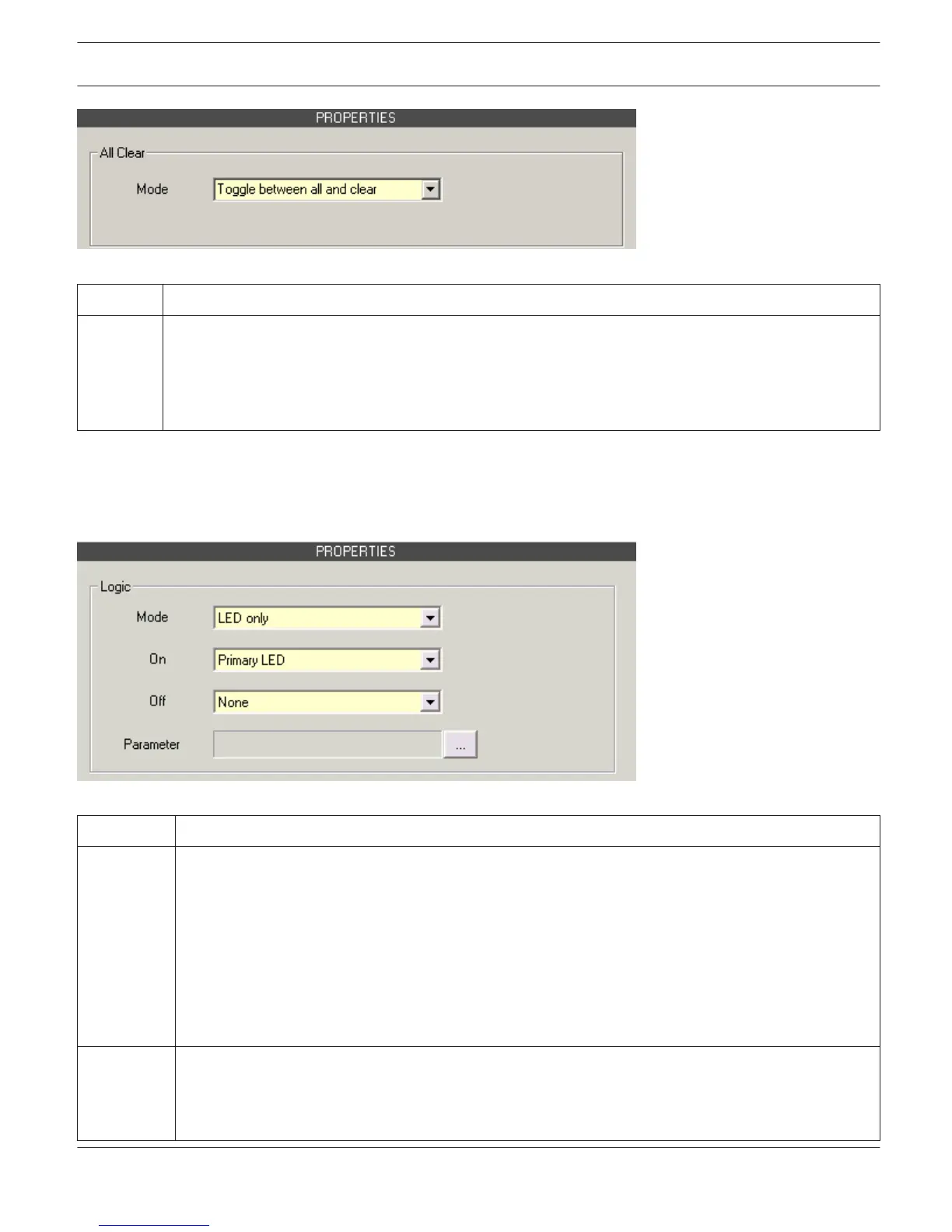

Mode Select the function that is to be executed when pressing the button on the call station:
– Toggle between all and clear = Each press of the button alternately selects or deselects all Zones
and/or Groups.
– Select All = Pressing the button selects all Zones and/or Groups of the whole system.
– Deselect All = Pressing the button deselects all Zones and/or Groups.
Logical Key
A switch of the type "Logical Key" allows setting the value of a logic variable (0 or 1). Pressing the button on the call
station sets the logic variable to the desired value. The adjacent LED is operated according to the resulting parameter.
Element
Description
Mode Select the desired parameter change that is to be executed when pressing the button on the call
station:
– Set Value = sets the value of the logic variable to "1". It remains "1", even after the button is being
released.
– Reset Value = sets the value of the logic variable to "0". It remains "0", even after the button is
being released.
– Push = sets the value of the logic variable to "1", but only as long as the button is being pressed.
– Toggle = inverts the value of the logic variable each time the button is being pressed.
– LED only = indicates the value of the logic variable, the value is not changed by the button
On Select the LED of the button that should indicate the value „1“ of the logic variable:
– Primary LED (green/red)
– Secondary LED (yellow)
– None
IRIS-Net PROMATRIX 8000 | en 801
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
