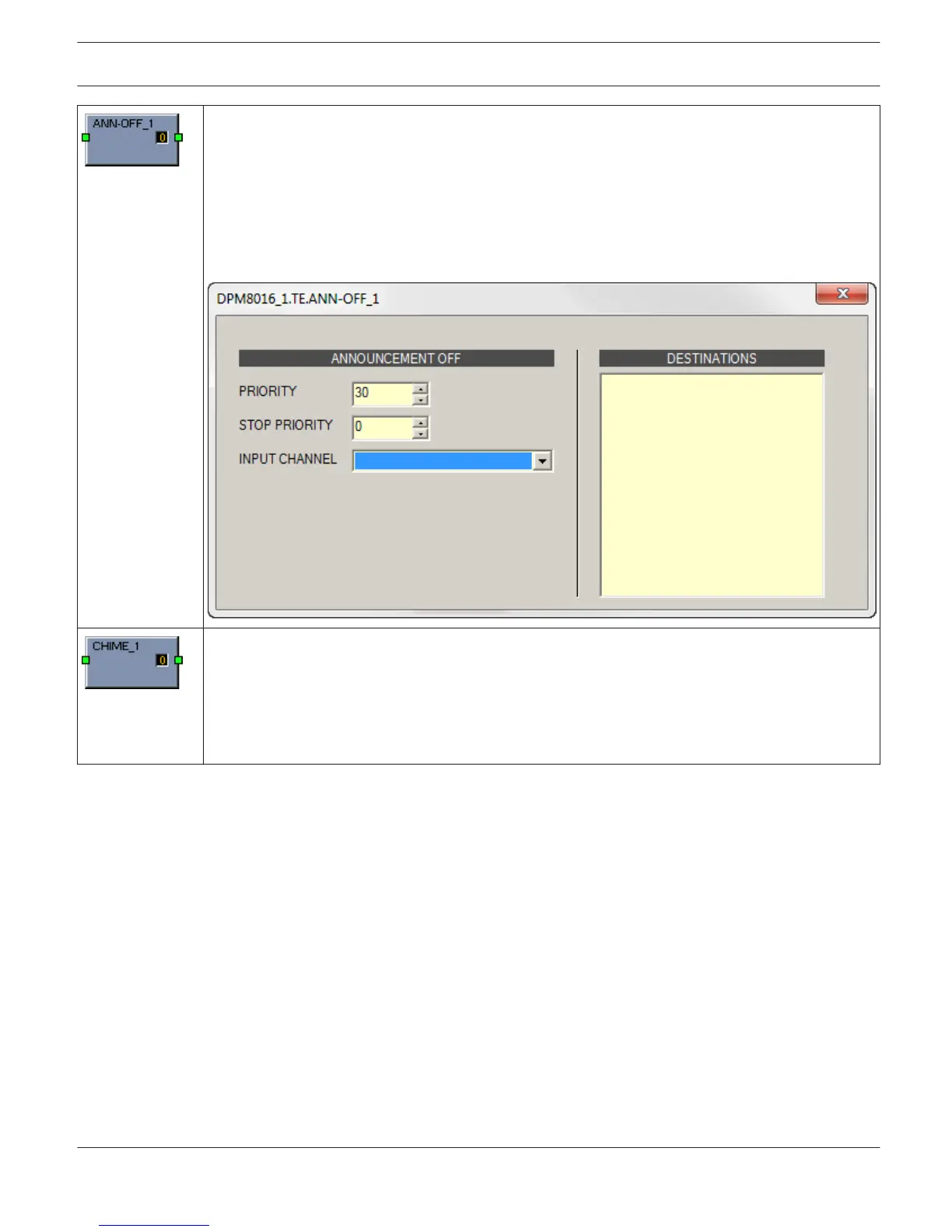

The Announcement OFF block is used to stop an announcement. Double click the block to edit the
announcement settings (see screenshot below).
– PRIORITY: Priority of the announcement (0 to 100).
– STOP PRIORITY: Enter the priority (0 to 100) that is used to stop an announcement.
– INPUT CHANNEL: Select the input channel of the device, where the announcement signal is
present.
– DESTINATIONS: Select the destination zone(s) or group(s), where the announcement should
be stopped.
The Chime block is used to trigger a chime. Double click the block to edit the chime settings.
– PRIORITY: The priority of the chime (0 to 100).
– TYPE: Select the type of the chime.
– LOOP: Select this checkbox to repeat the chime automatically.
– HOLD: Hold means that the message is stopped at the loop end.
– DESTINATIONS: Select the destination zone(s) or group(s) for the chime.
