Printer Maintenance

BBP

®

35/37 User’s Manual 176 Rev A

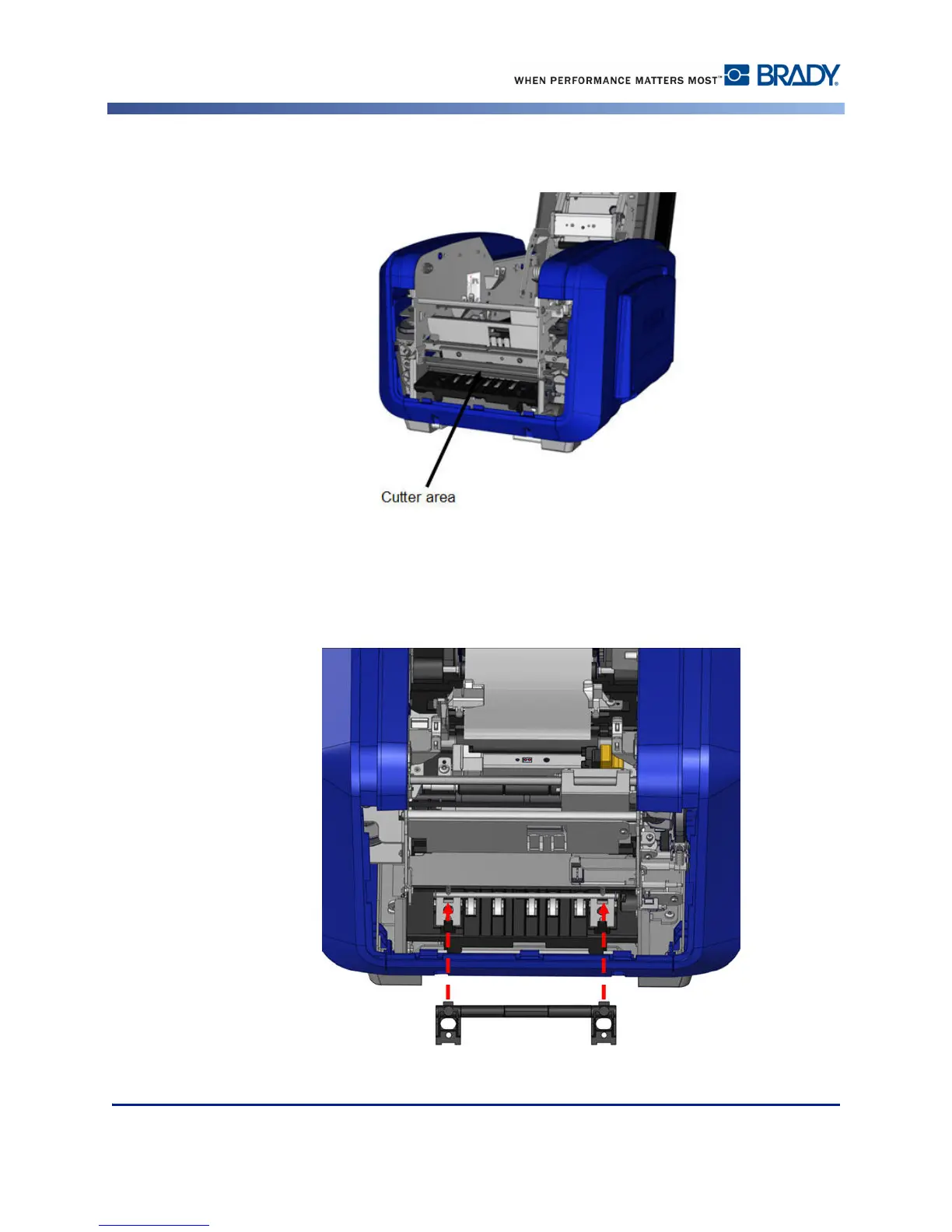

6. Using a cotton swab, clean the cutter area.

To return the black roller to its original position:

7. Align the tabs with the insertion slots, then snap the roller into place.
