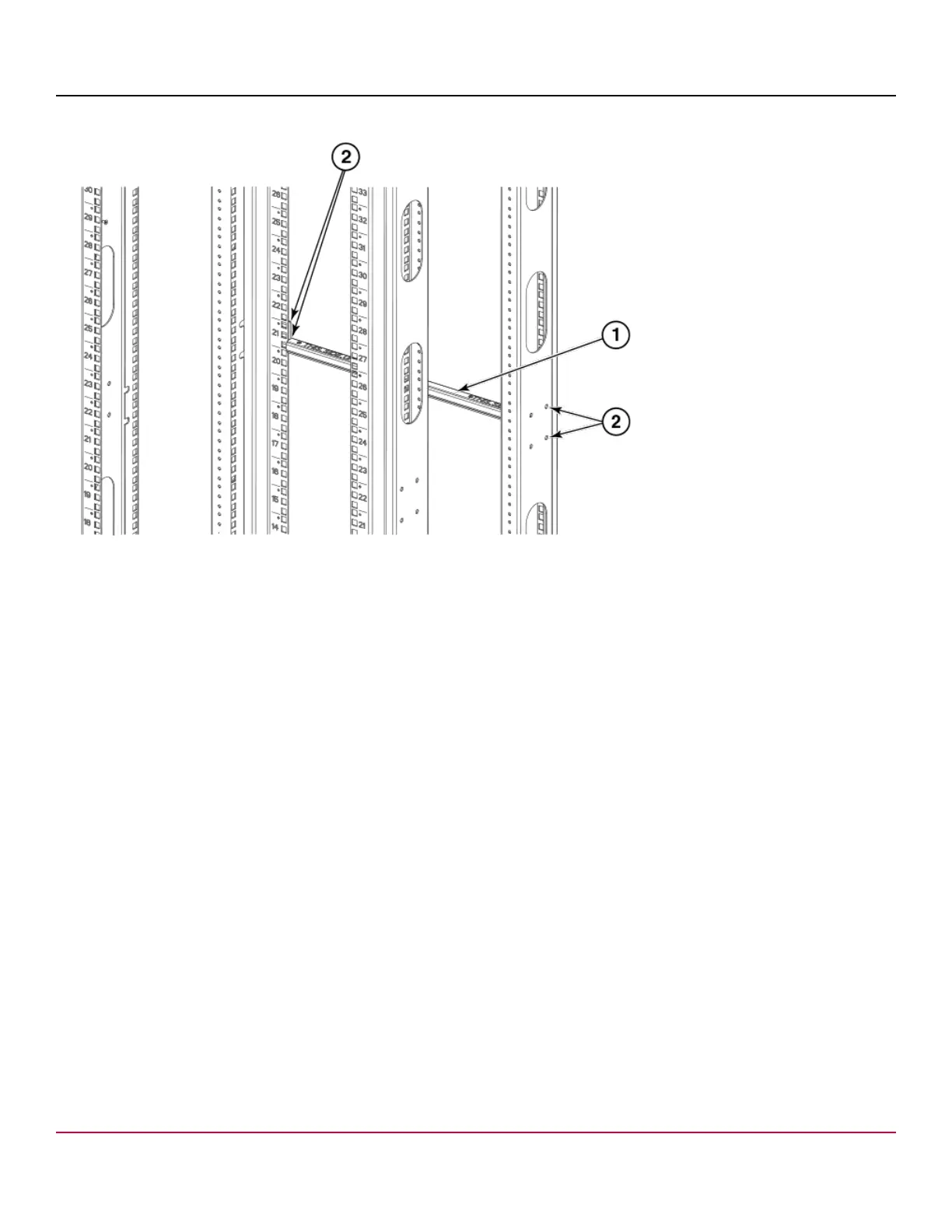

Figure 13: Installing saddle to equipment rack
1. Shelf saddle
2. 10-32 x .5 in. (1.27 cm) Phillips screw with blue Loctite on threads or 10-32 x .63 in.(1.60 cm) Phillips screw
with square cone washer for racks that have rails with round holes. Use either 10-32 retainer nut for racks that
have rails with square holes or 10-32 clip nut for racks that have rails with round holes to retain screws.
NOTE
For rails with round holes, use the clip nuts (refer to Figure 7) on the rails for securing 10-32 screws. For rails
with square holes, use the retainer nuts (see Figure 7). Also refer to Figure 8.
53-1002177-19
39
