53-1002177-19 Hardware Installation Guide Brocade DCX 8510-4 Backbone Hardware Installation Guide
4. Place the shelf (refer to the following figure) on the saddle then secure it to the rack rails using four 10-32 screws with
washers (refer to Figure 7). Tighten the screws according to specifications under Torque requirements.

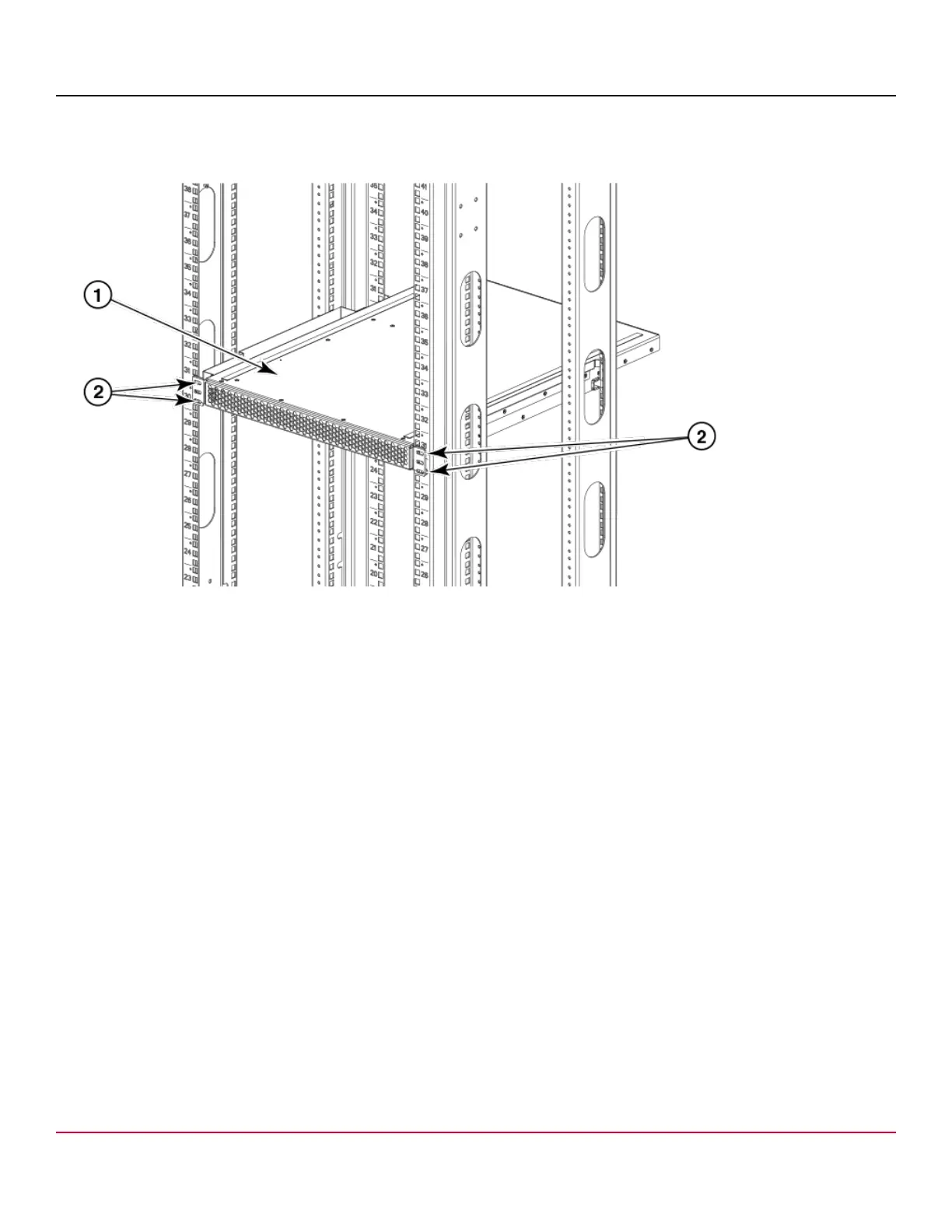

Figure 14: Shelf installed in rack
1. Shelf
2. 10-32 x .63 in.(1.60 cm) Phillips screw with washers
NOTE
For rails with round holes, use the clip nuts on the front rails for securing 10-32 screws. For rails with square
holes, use the retainer nuts.
53-1002177-19
40
