1.2 Procedures to Replace Periodical Replacement Parts
1.2.1 Fuser unit and laser unit
<Uninstalling Procedure>
Check that the following before entering the procedures.
• Make sure that the AC cord is disconnected from the printer.
• Make sure that the Drum/toner ASSY is removed.
• Make sure that the DX feed ASSY or DX blank cover is removed.
• Make sure that the Paper is removed from the Paper tray.
(1) Open the Back cover.
(2) Remove the Pins of the Outer chute from the Back cover.

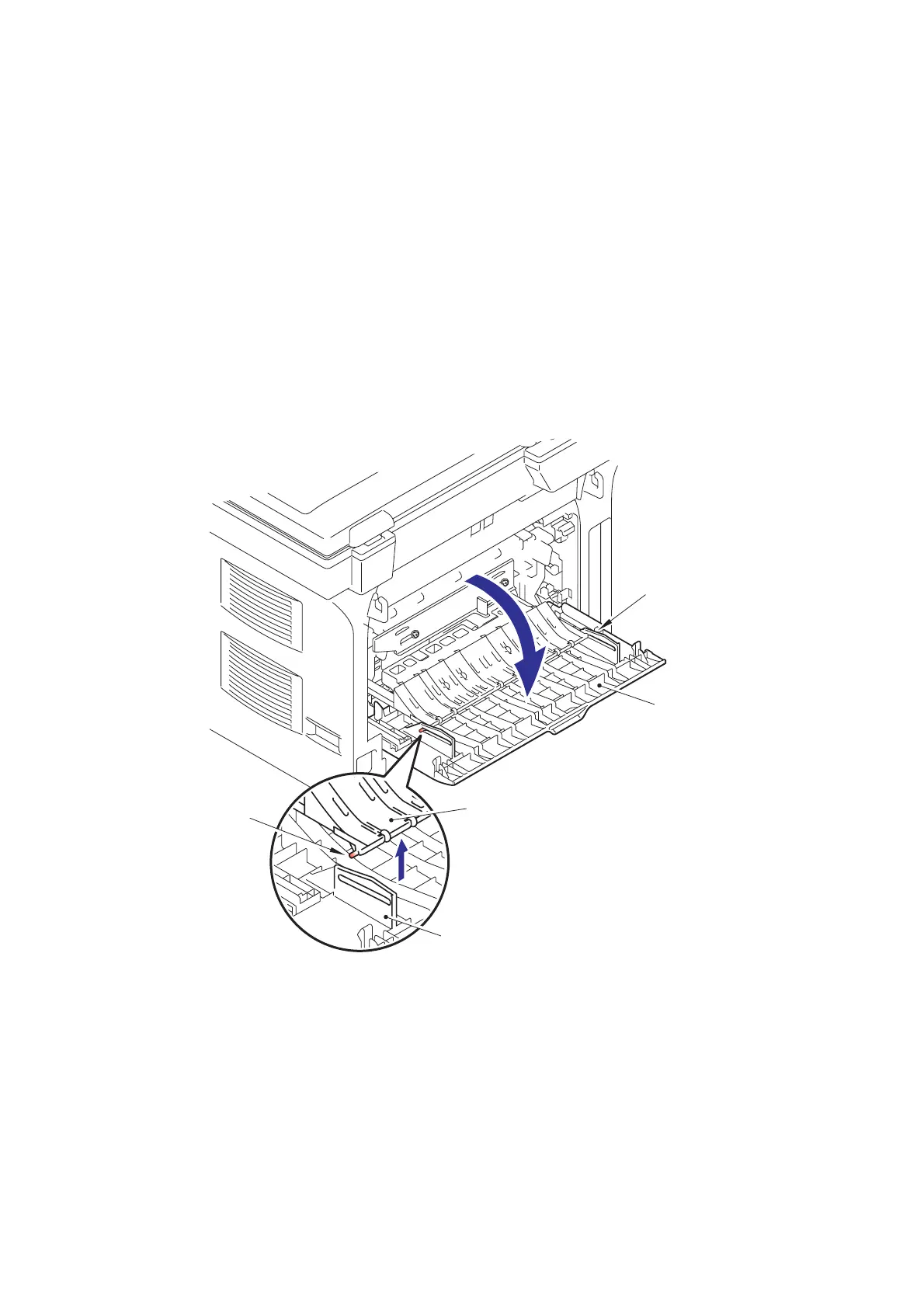

Fig. 4-1
Pin
Pin
Back cover
Back cover
Outer chute ASSY
