Brother DCP 8085DN

5-80
Confidential

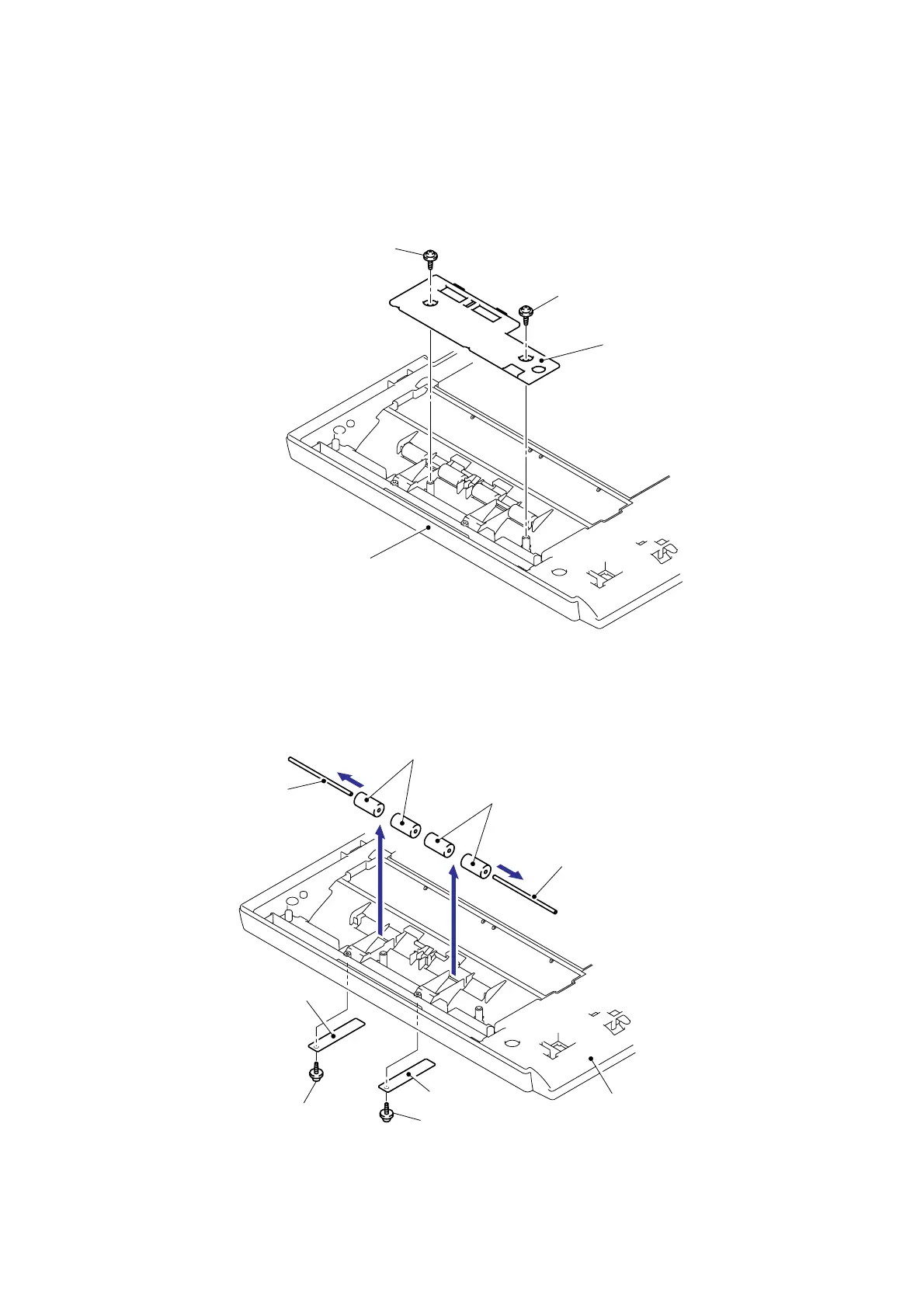

9.44 Presser Roller
(1) Turn the Document cover LGL upside down. Remove the two cup B M3x10 Taptite
screws.
(2) Remove the Rear sensor cover from the Document cover LGL.
Fig. 5-93
(3) Remove the two cup B M3x10 Taptite screws, and then remove the two LF springs, four
Presser rollers and two Presser roller shafts S.
Fig. 5-94
Taptite cup B M3x10
Taptite cup B M3x10
Document cover LGL
Rear sensor cover
Presser rollers
Presser rollers
Pressure roller shaft S
Document cover LGL
Taptite cup B M3x10
LF spring
LF spring
Taptite cup B M3x10
Pressure roller shaft S
