Brother DCP 8085DN

5-137
Confidential

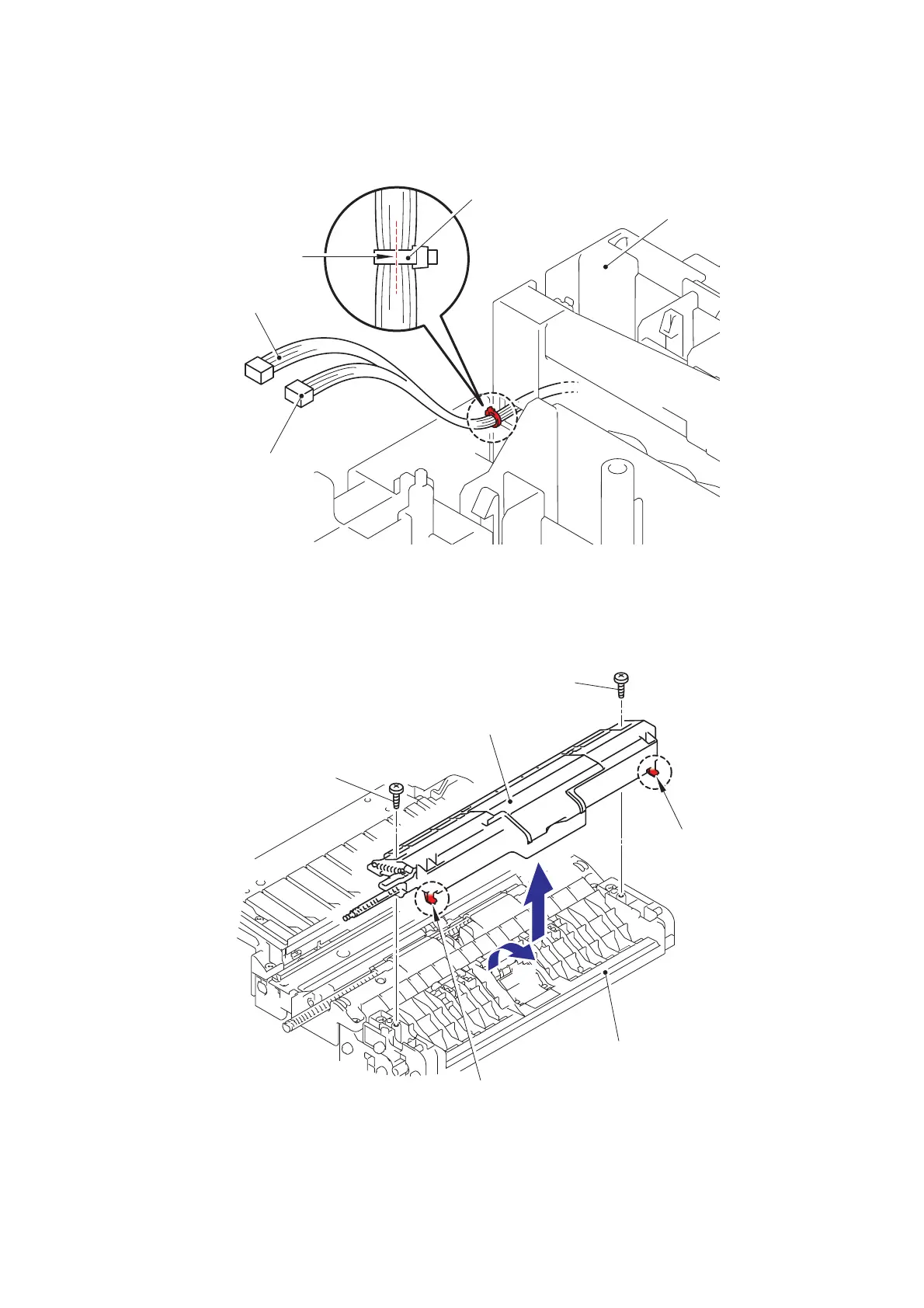

9.88 MP Unit
(1) Cut the Binder bundling the harnesses with nippers.
Fig. 5-186
(2) Remove the two bind B M3x8 Taptite screws.
(3) Lift up the back side of the MP feed frame and pull up the MP feed frame to remove.
Fig. 5-187
Binder
Paper feed frame
Cut
MP PE sensor connector
PE EG sensor connector
Hook
Hook
Paper feed frame
Taptite, bind B M3x8
MP feed frame
3b
3a
Taptite, bind B M3x8
