Brother DCP 8085DN - Flap B; Actuator Sb;Photo Interrupter (for the Models with the DX Only)

5-76
Confidential

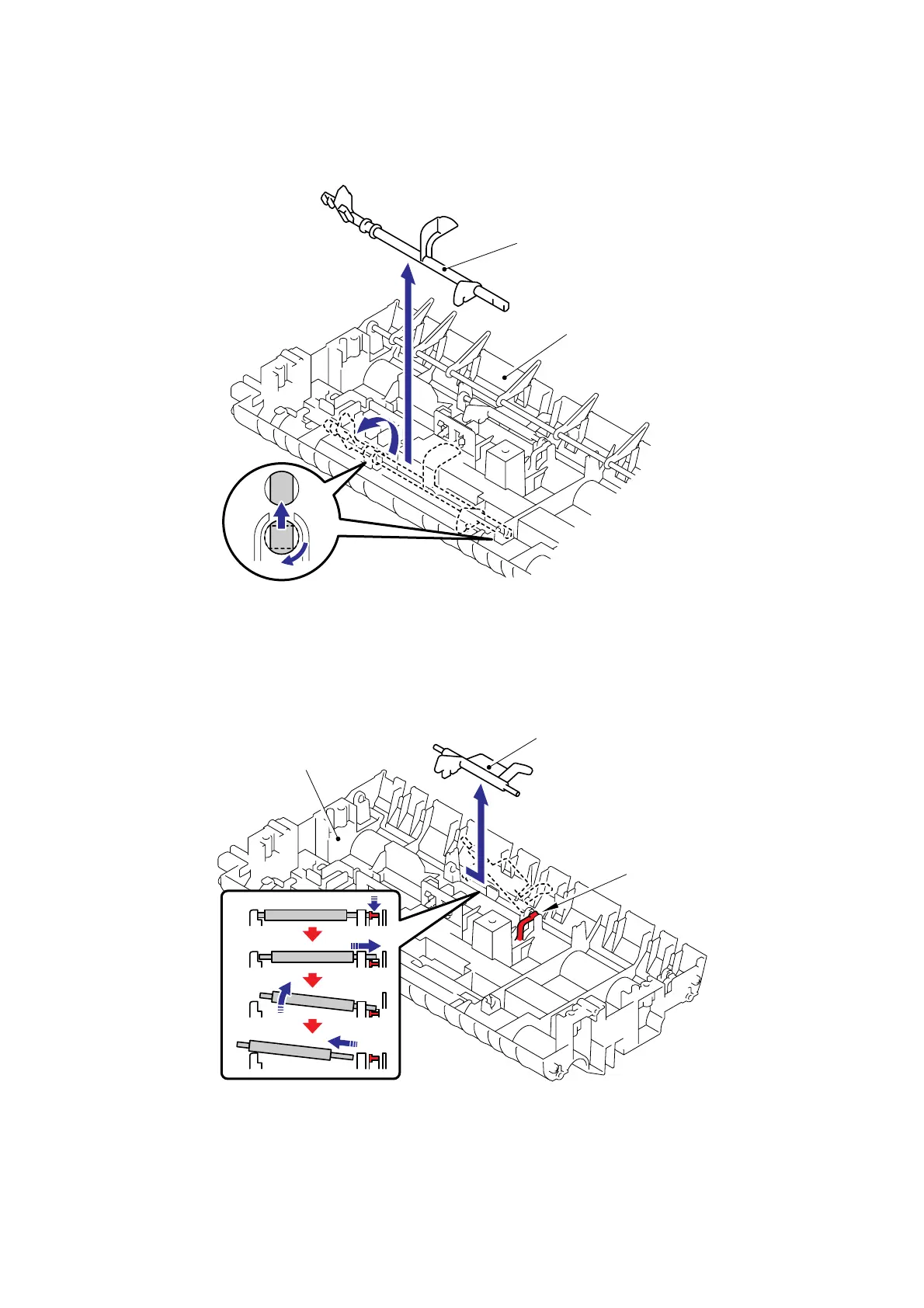

9.39 Flap B
(1) Remove the Flap B from the Lower main chute.
Fig. 5-87
9.40 Actuator SB/Photo Interrupter (For the models with the DX only)
(1) Push down the Stopper, slide the Actuator SB to the stopper side and pull up the
Actuator SB to remove.
Fig. 5-88
Actuator R
Lower main chute
1b
1a1a
Lower main chute
Actuator SB
Stopper
