9.21 SB Roller ASSY (For the models with the Reading DX only)
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the SB roller ASSY from
the ADF chute ASSY.

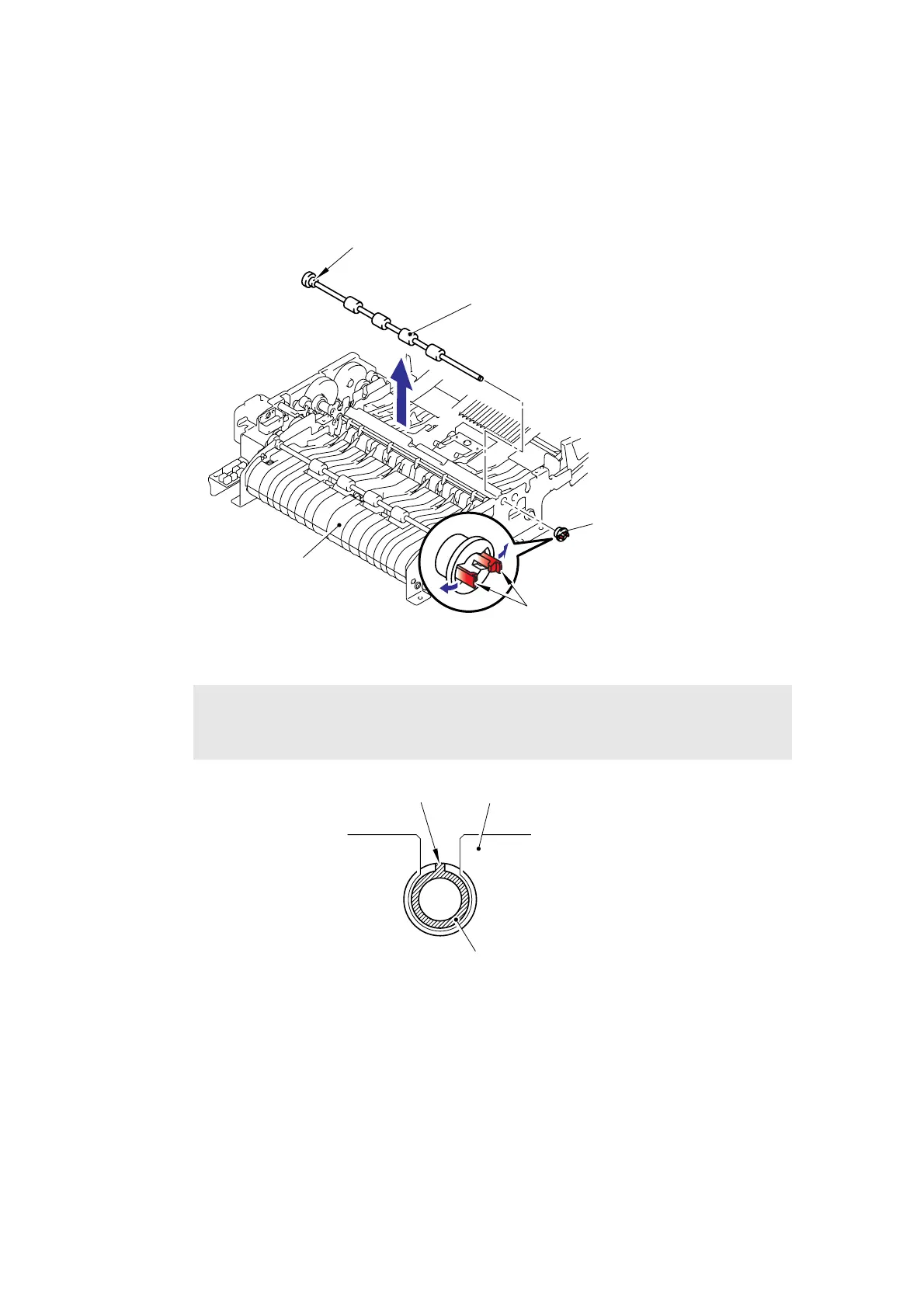

Fig. 5-54
Fig. 5-55
Assembling Note:
• When assembling the SB roller ASSY, assemble the Bushing with aligning the Boss
of the Bushing with the notch on the ADF chute ASSY.
Bushing
SB roller ASSY
Conductive bushing A
<Front side>
Hooks
ADF chute ASSY
Boss ADF chute ASSY
Bushing
