Brother DCP 8085DN

5-118
Confidential

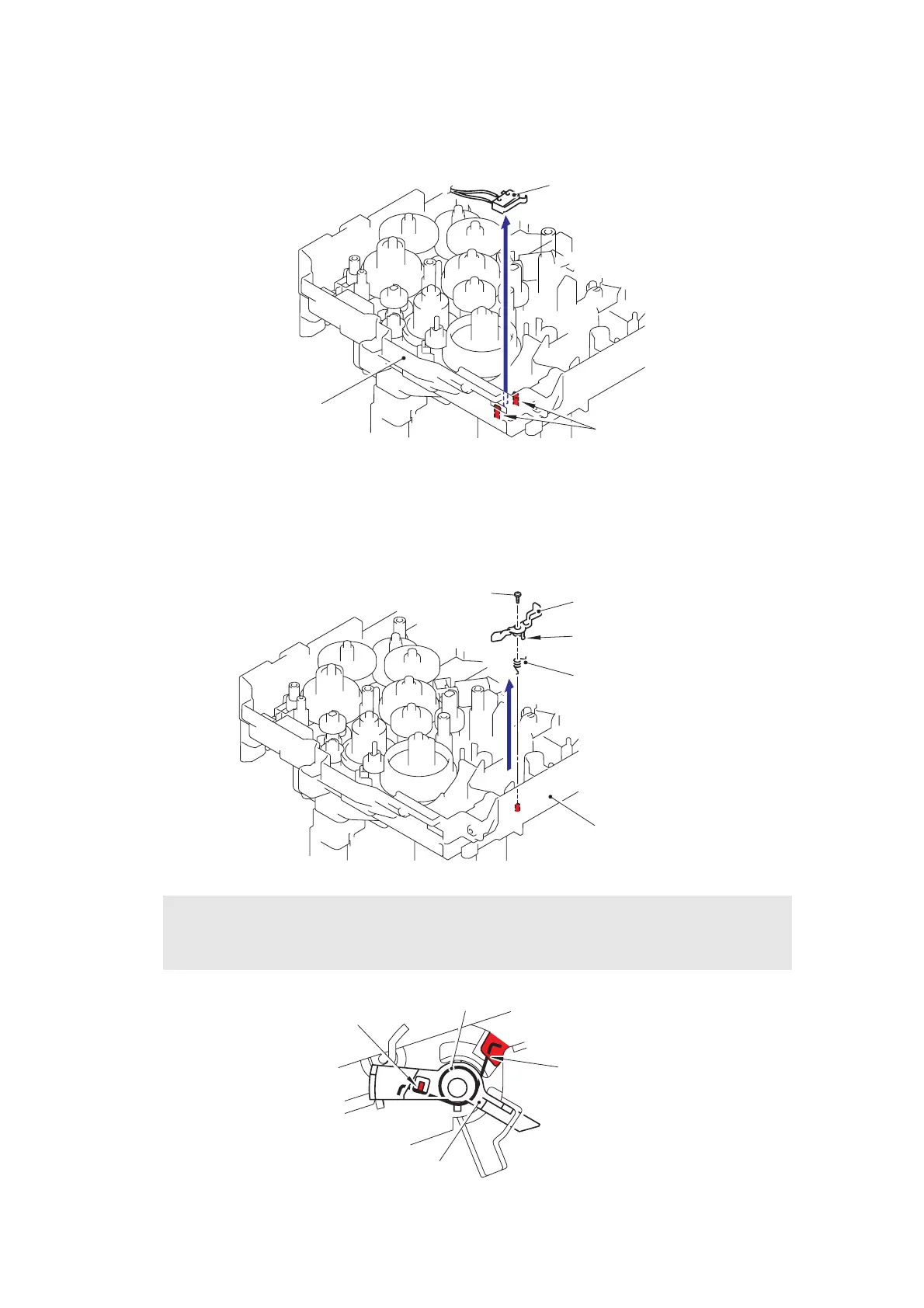

9.75 Interlock SW ASSY
(1) Remove the Interlock SW ASSY from the Frame L.
Fig. 5-154
9.76 New Toner Actuator
(1) Remove the cup B M2x6 Taptite screw.
(2) Remove the New toner actuator and the New toner actuator spring.
Fig. 5-155
Fig. 5-156
Assembling Note:
• When assembling the New toner actuator spring, ensure that its direction is correct
referring to the figure below.
Frame L
Interlock SW ASSY
Hooks
Frame L
New toner actuator spring
New toner actuator
Taptite, cup B M2x6
Hook
New toner actuator spring
New toner actuator
Hook
Hook
