Brother DCP 8085DN

5-61
Confidential

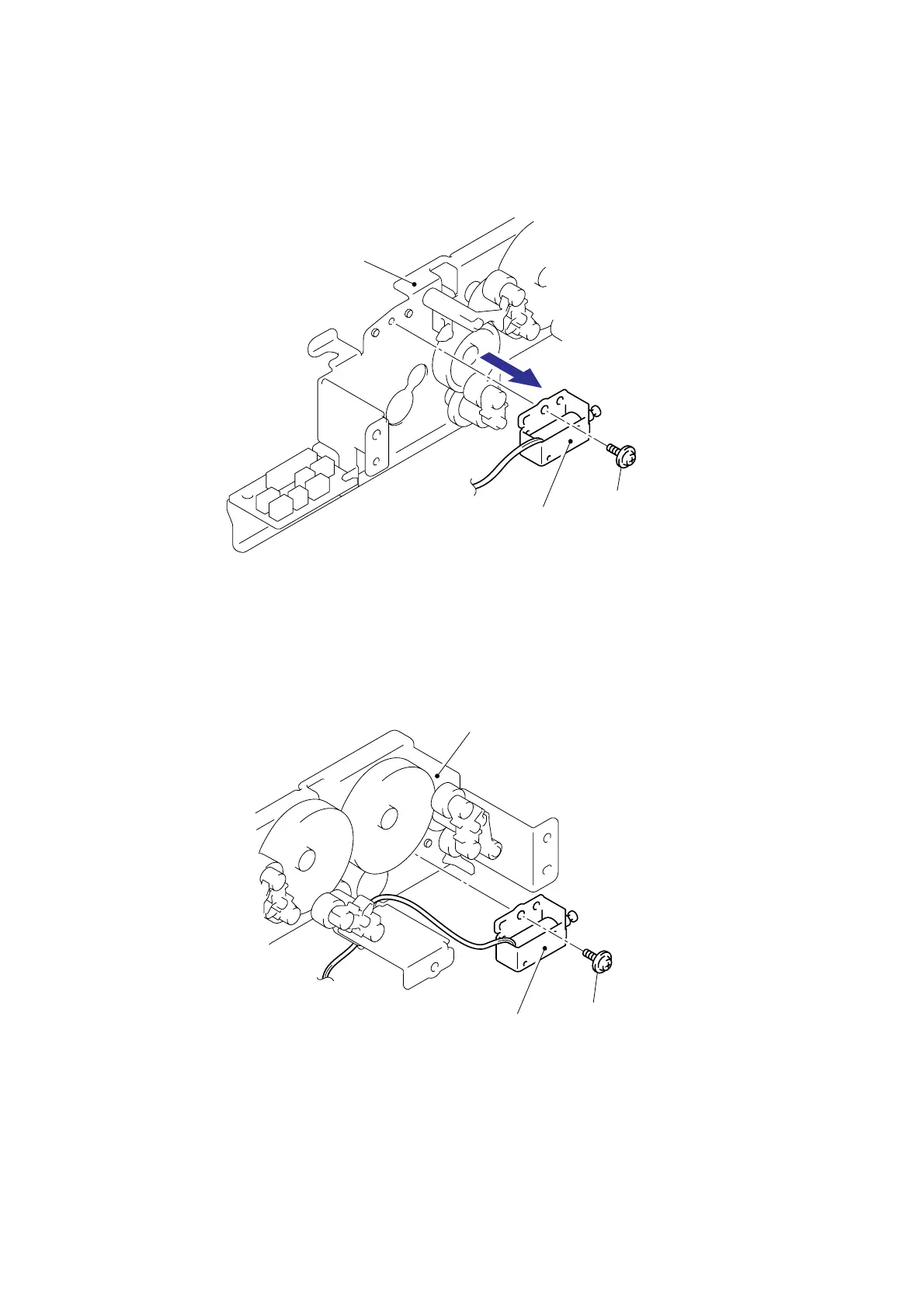

9.23 S/B Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the S/B solenoid ASSY.
Fig. 5-60
9.24 PF Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the PF solenoid ASSY.
Fig. 5-61
Motor frame ASSY
S/B Solenoid ASSY
Taptite cup S M3x8
Motor frame ASSY
PF Solenoid ASSY
Taptite cup S M3x8
