Brother DCP 8085DN

5-70
Confidential

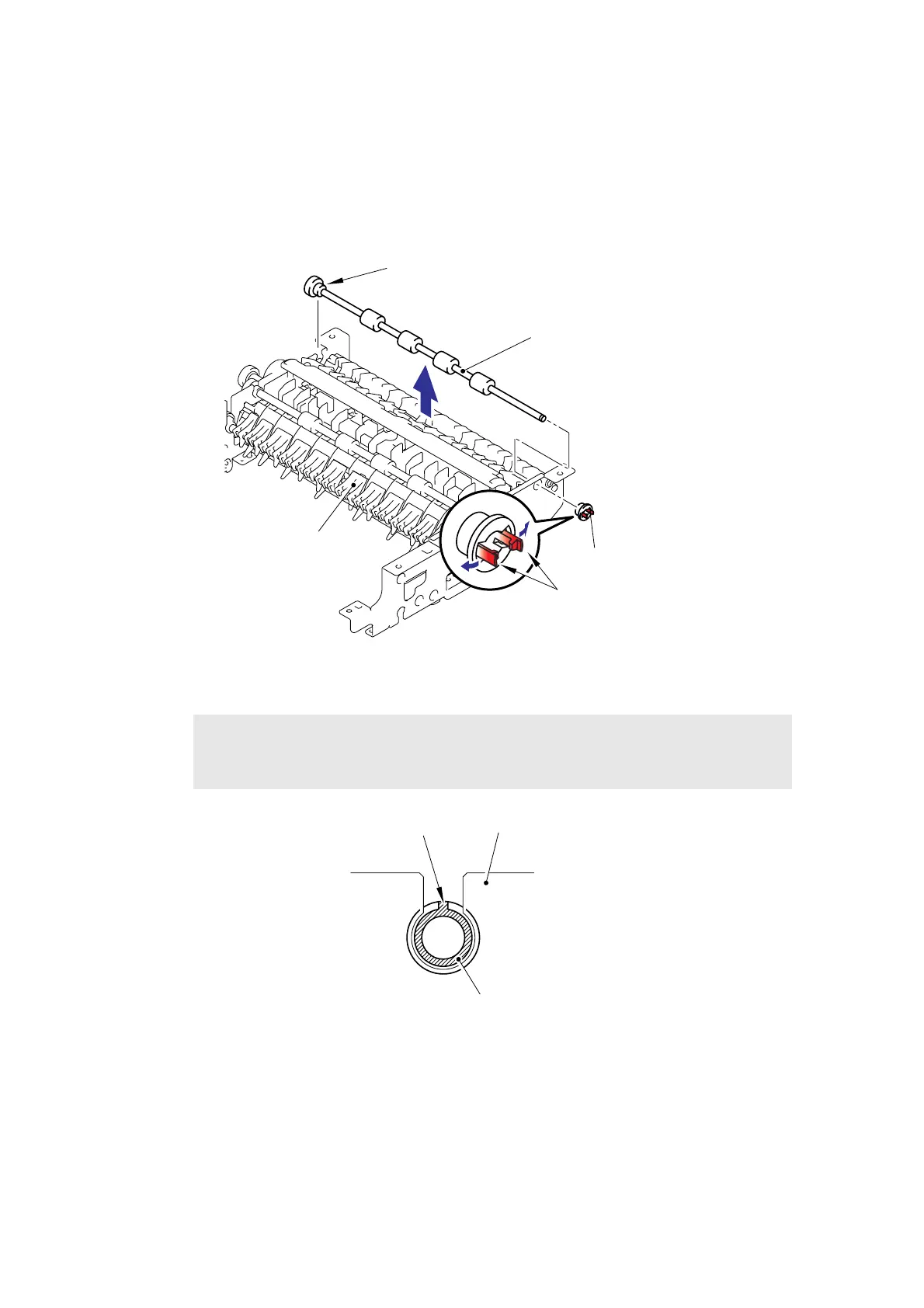

9.33 LF Roller 3 ASSY
(1) Turn the ADF chute ASSY upside down. Release the Hooks of the Conductive bushing
A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the LF roller 3 ASSY from
the ADF chute ASSY.
Fig. 5-75
Fig. 5-76
Assembling Note:
• When assembling the LF roller 3 ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
LF roller 3 ASSY
ADF chute ASSY
Conductive bushing A
Hooks
<Front side>
Boss ADF chute ASSY
Bushing
