9.7 Access Cover/Side Cover L

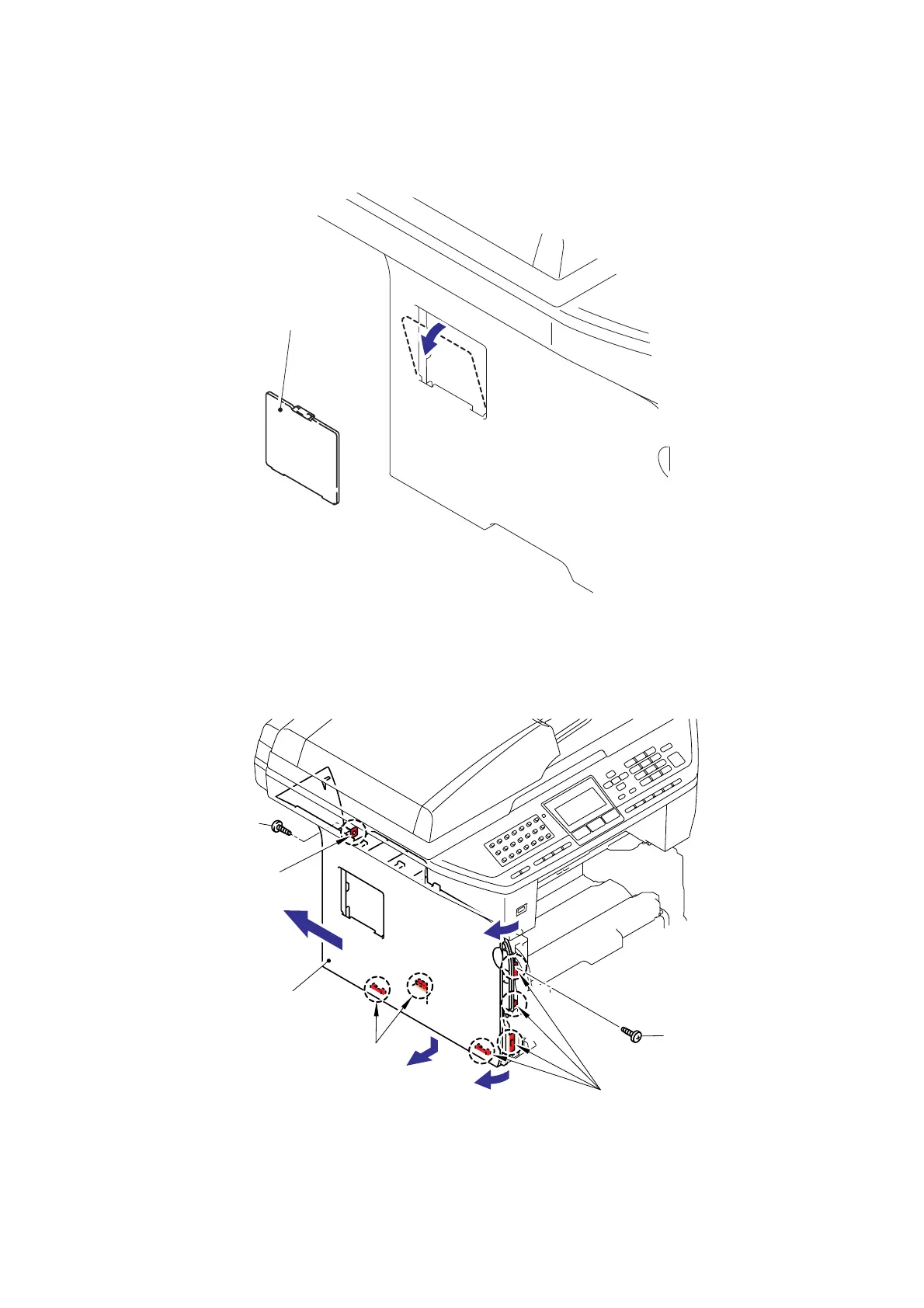

(1) Remove the Access cover.
Fig. 5-32
(2) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover L by
releasing the Hooks from 2a to 2d.
Fig. 5-33
Access cover
2b
2a
2c
2d
Taptite, bind B M4x12
Hooks
Hooks
Hooks
Side cover L
Taptite, bind B M4x12
