Brother DCP 8085DN

5-117
Confidential

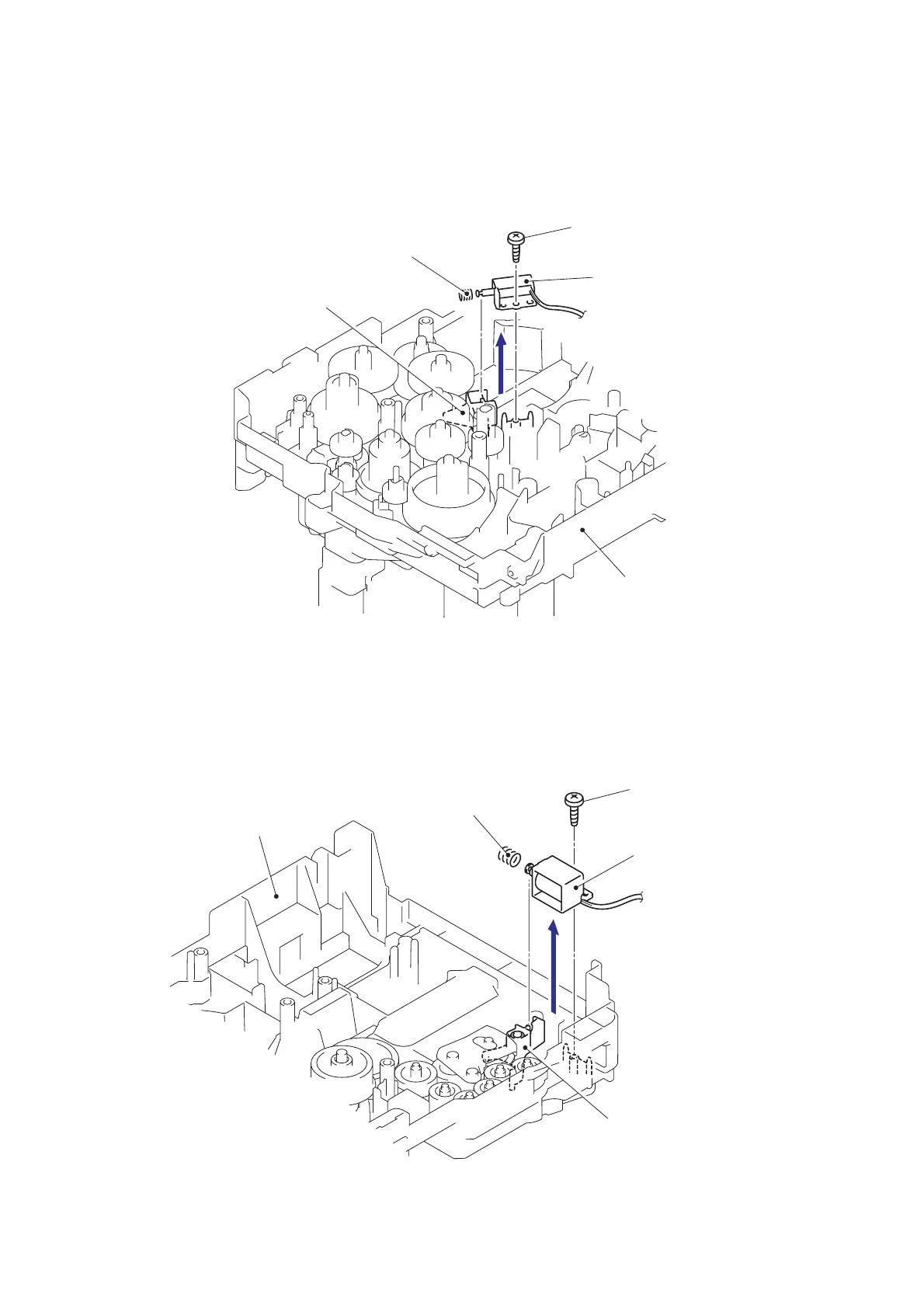

9.73 Register Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Register solenoid ASSY and the Solenoid release spring.
Fig. 5-152
9.74 Ejector Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Ejector solenoid and the Solenoid release spring.
Fig. 5-153
Solenoid release spring
Taptite, bind B M3x10
Register solenoid ASSY
Frame L
Register solenoid lever
Taptite, bind B M3x10
Ejector solenoid
Ejector solenoid lever
Solenoid release spring
Frame L
