9.47 Top Cover ASSY
(1) Remove the six cup B M4x12 Taptite screws.
(2) Remove the Top cover ASSY from the Scanner base ASSY.

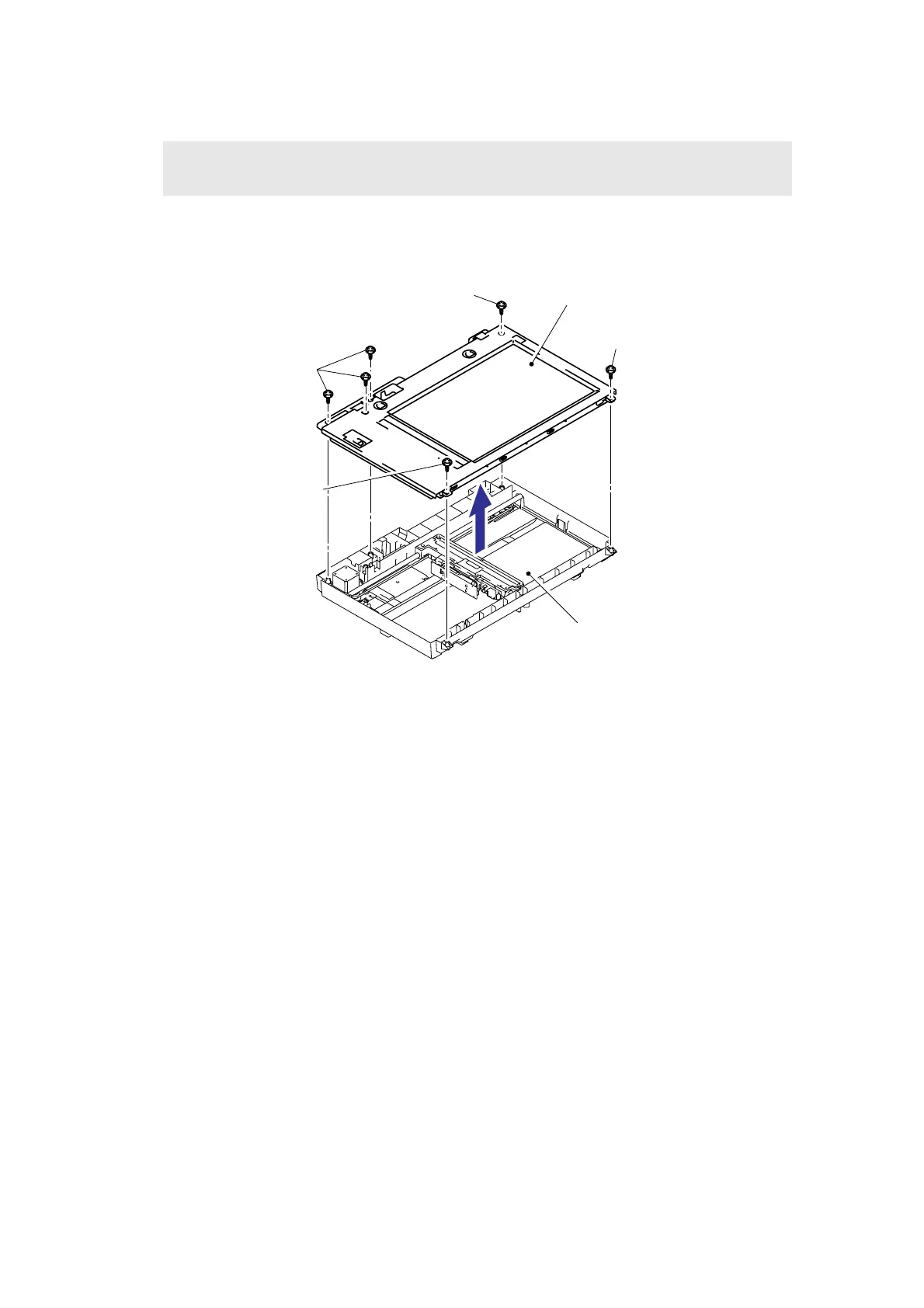

Fig. 5-98
Note:
• Be sure not to open the Top cover ASSY in a dusty place.
Taptite cup B M4x12
Taptite cup B M4x12
Top cover ASSY
Scanner base ASSY
Taptite cup B M4x12
Taptite cup B M4x12
