9.22 ADF Motor

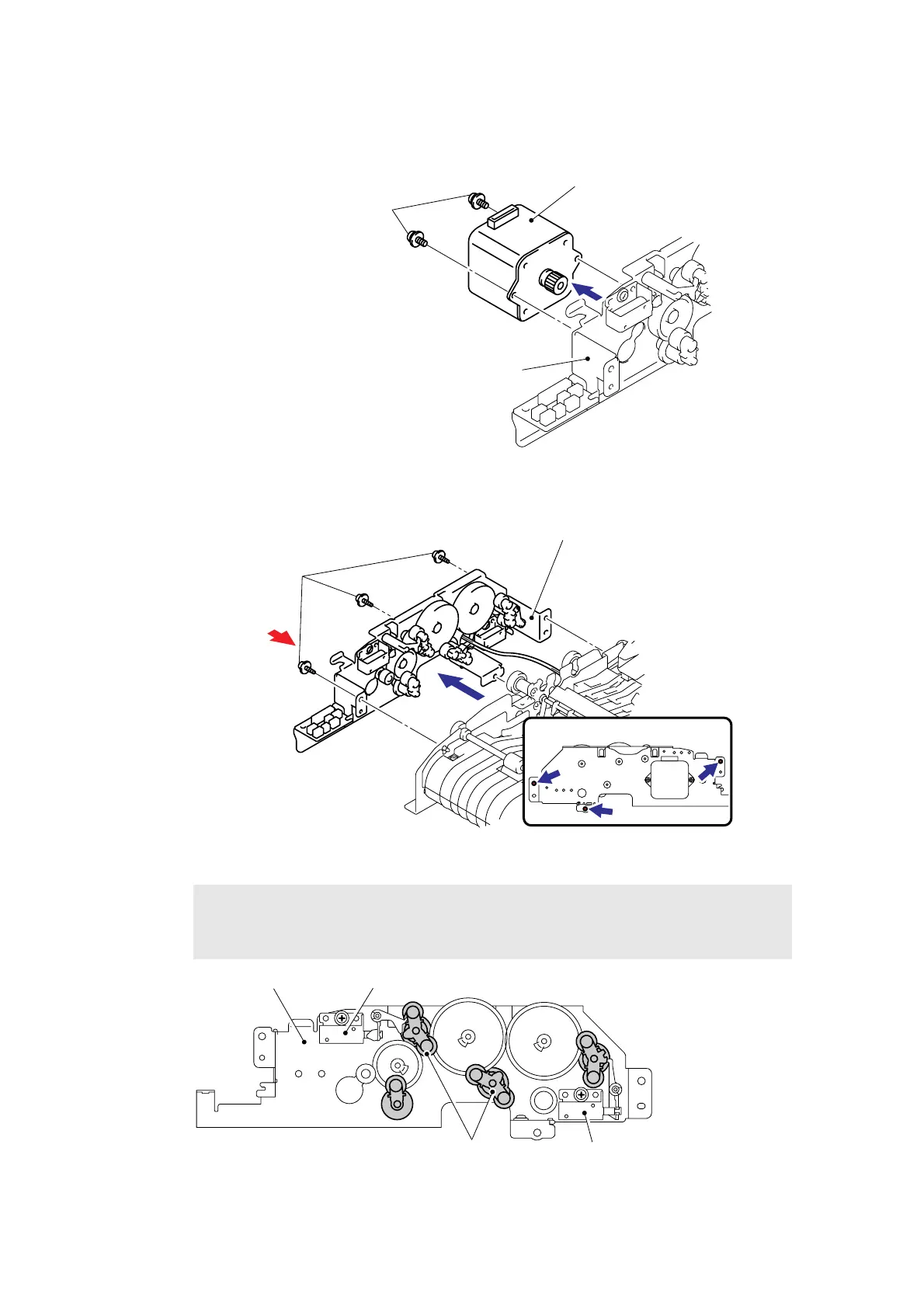

(1) Remove the two screw pan (S/P washer) M3x6, and then remove the ADF motor.
Fig. 5-57
(2) Remove the three cup S M3x8 Taptite screws, and then remove the Motor frame ASSY.
Fig. 5-58
Fig. 5-59
Assembling Note:
• When assembling the Motor frame ASSY, ensure that the gears (indicated with
gray) are placed in the positions as shown in the figure below.
Screw, pan (S/P washer) M3X6
Motor frame ASSY
ADF motor
View A
Motor frame ASSY
Taptite cup S M3x8
Screw positions
<View A>
<Back side>
Motor frame ASSY S/B solenoid ASSY (For the models with the DX only)
PF solenoid ASSY
(For the models with the DX only)
Arm ASSY SB (For the models with the DX only)
