9.55 Panel PCB ASSY
(1) Disconnect the connector of the Panel PCB harness from the Panel unit.
(2) Remove the four cup B M3x10 Taptite screws, release the two Hooks and remove the
Panel cover.

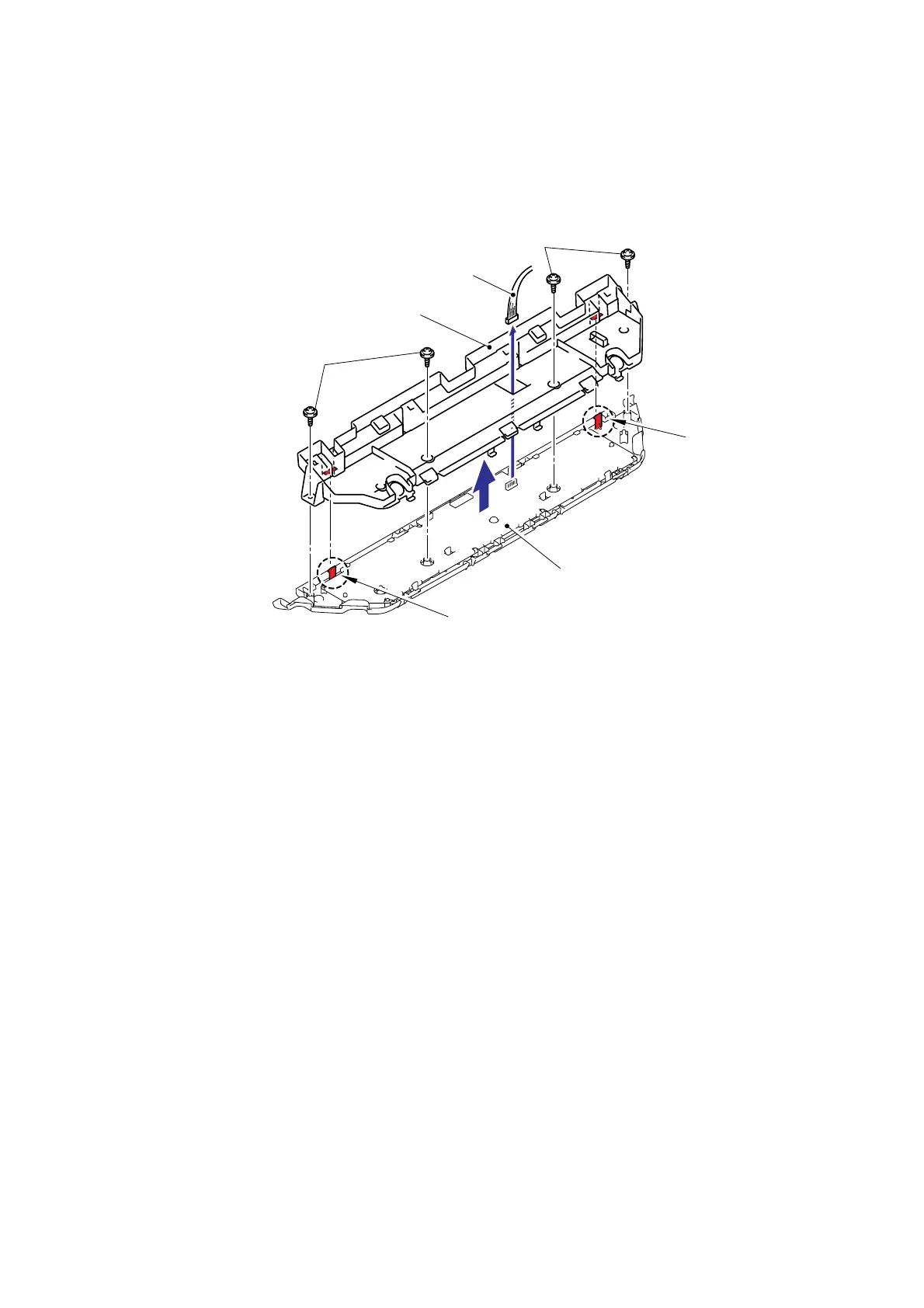

Fig. 5-111
Hook
Hook
Panel unit generic
Panel PCB harness
Taptite cup B M3x10
Panel cover generic
Taptite cup B M3x10
1
2
