10.2 LT Front Cover ASSY
(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the LT front cover ASSY.

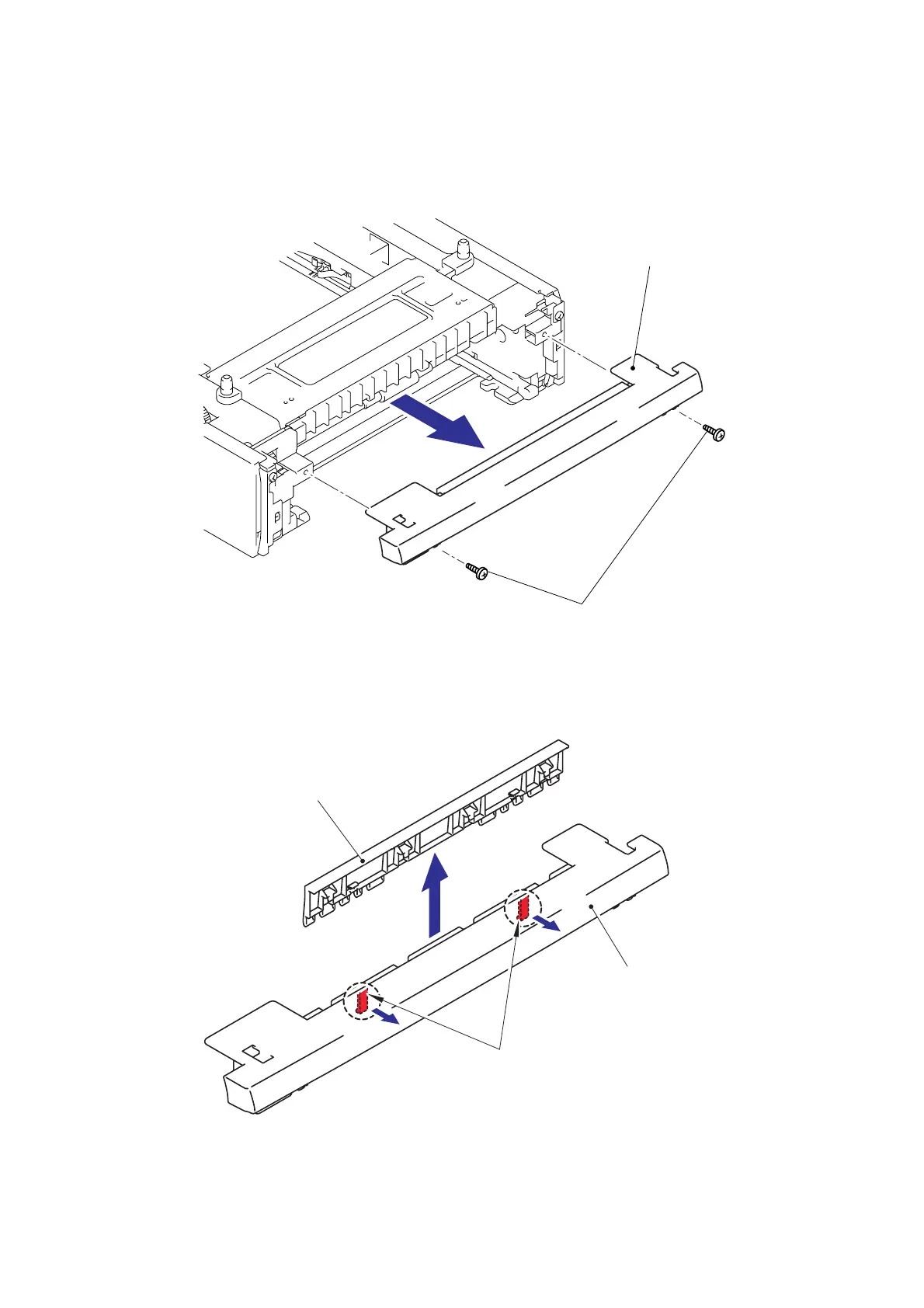

Fig. 5-215
(3) Remove the LT front paper guide from the LT front cover ASSY while pulling the two
hooks inwards.
Fig. 5-216
Taptite, bind B M4x12
LT front cover ASSY
LT front cover ASSY
Hooks
LT front paper guide
