10.10 Collar 6
(1) Remove the Gear plate ground spring from the LT frame L.

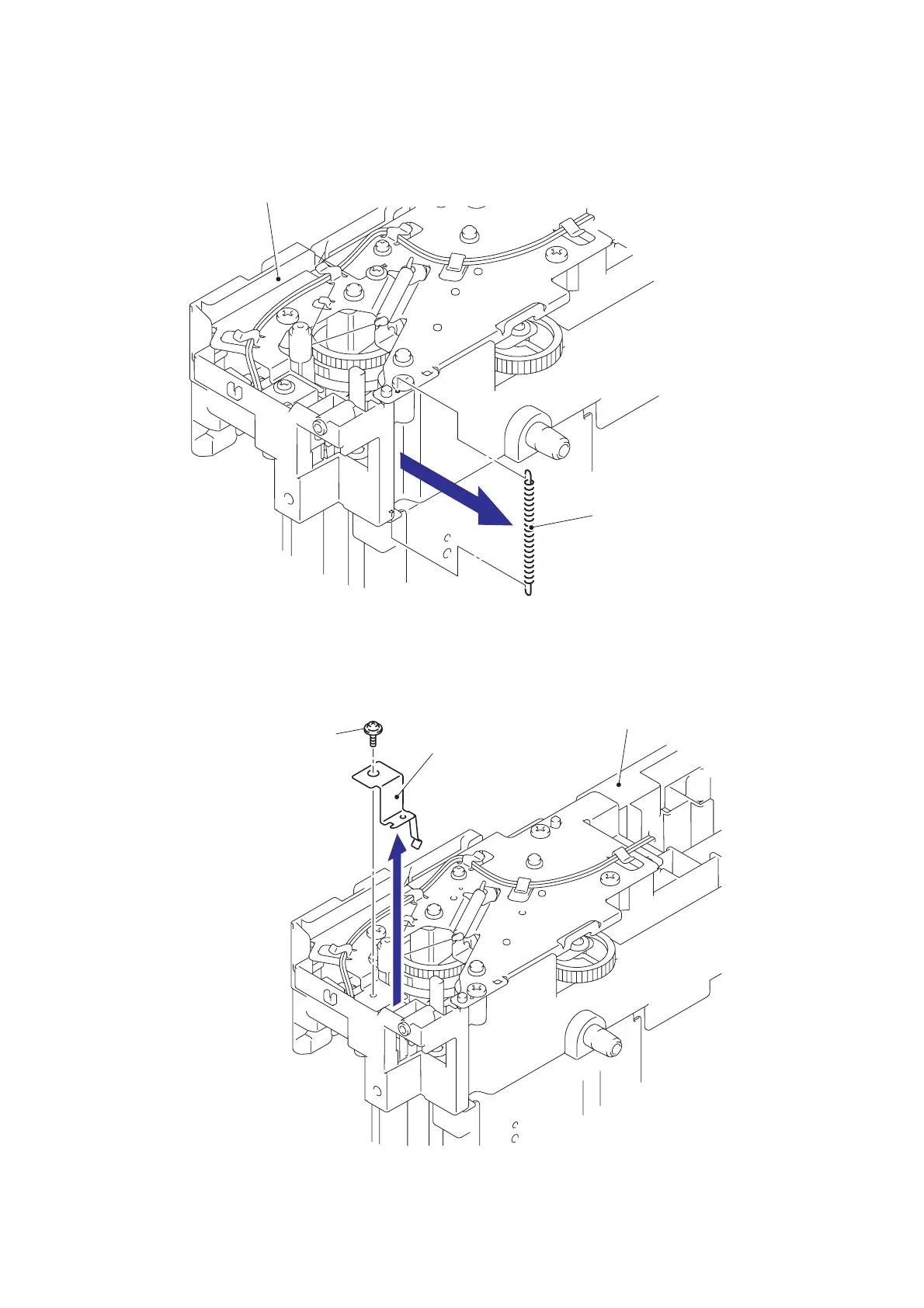

Fig. 5-225
(2) Remove the cup S M3x6 Taptite SR screw, and then remove the Feed roller ground
plate.
Fig. 5-226
Gear plate ground spring
LT frame L
Taptite, cup S M3x6 SR
LT frame L
Feed roller ground plate
