Brother DCP 8085DN

5-89
Confidential

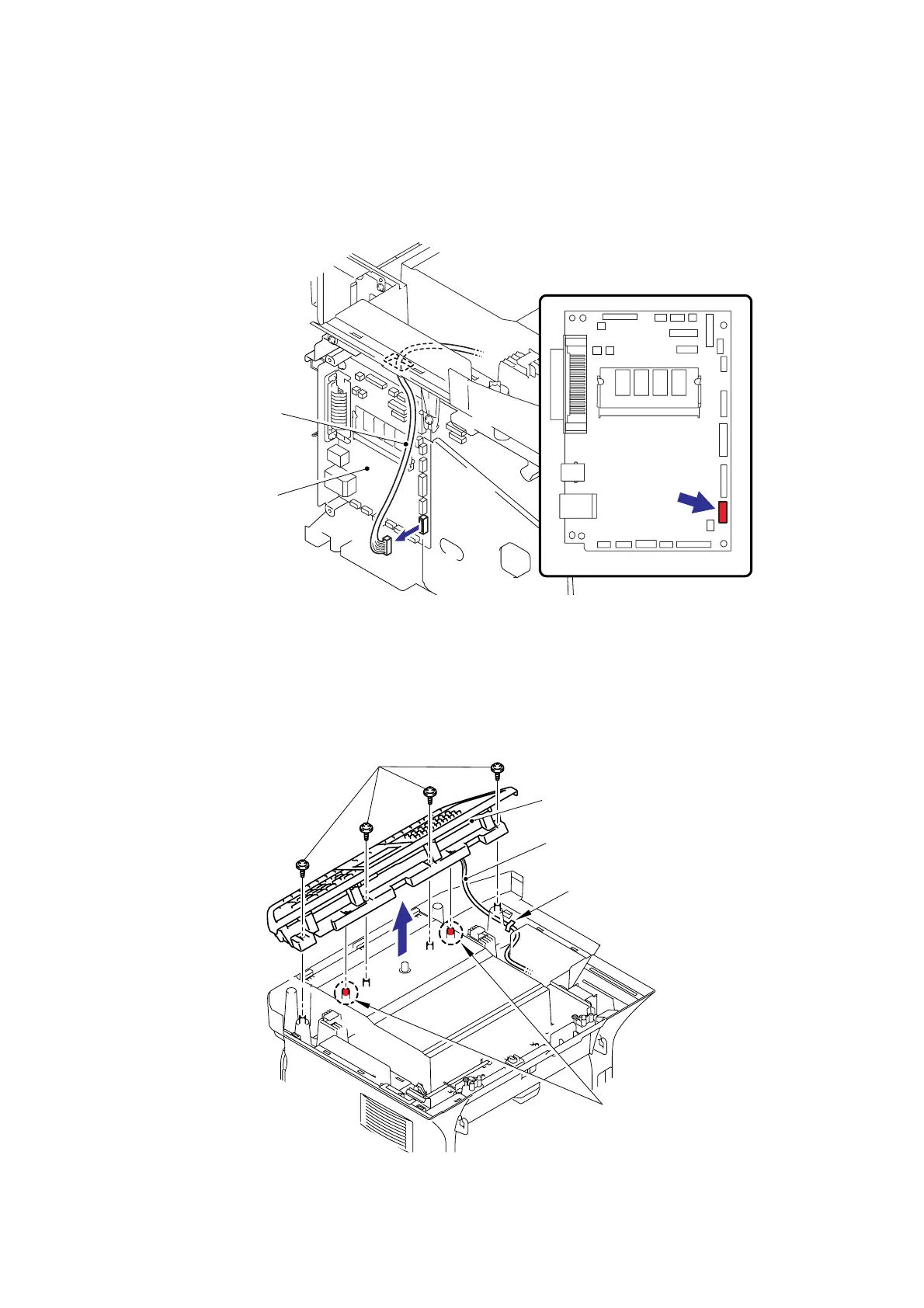

9.54 Panel Unit
(1) Disconnect the connector of the Panel PCB harness from the Main PCB.
Fig. 5-109
(2) Remove the four cup B M4x12 Taptite screw.
(3) Remove the Tape fixing the Panel PCB harness.
(4) Remove the Panel Unit.
Fig. 5-110
Main PCB
<Left side>
Main PCB
Panel PCB harness
Tape
Pins
Panel unit generic
Panel PCB harness
<Back side>
Taptite cup B M4x12
