Brother DCP 8085DN

5-93
Confidential

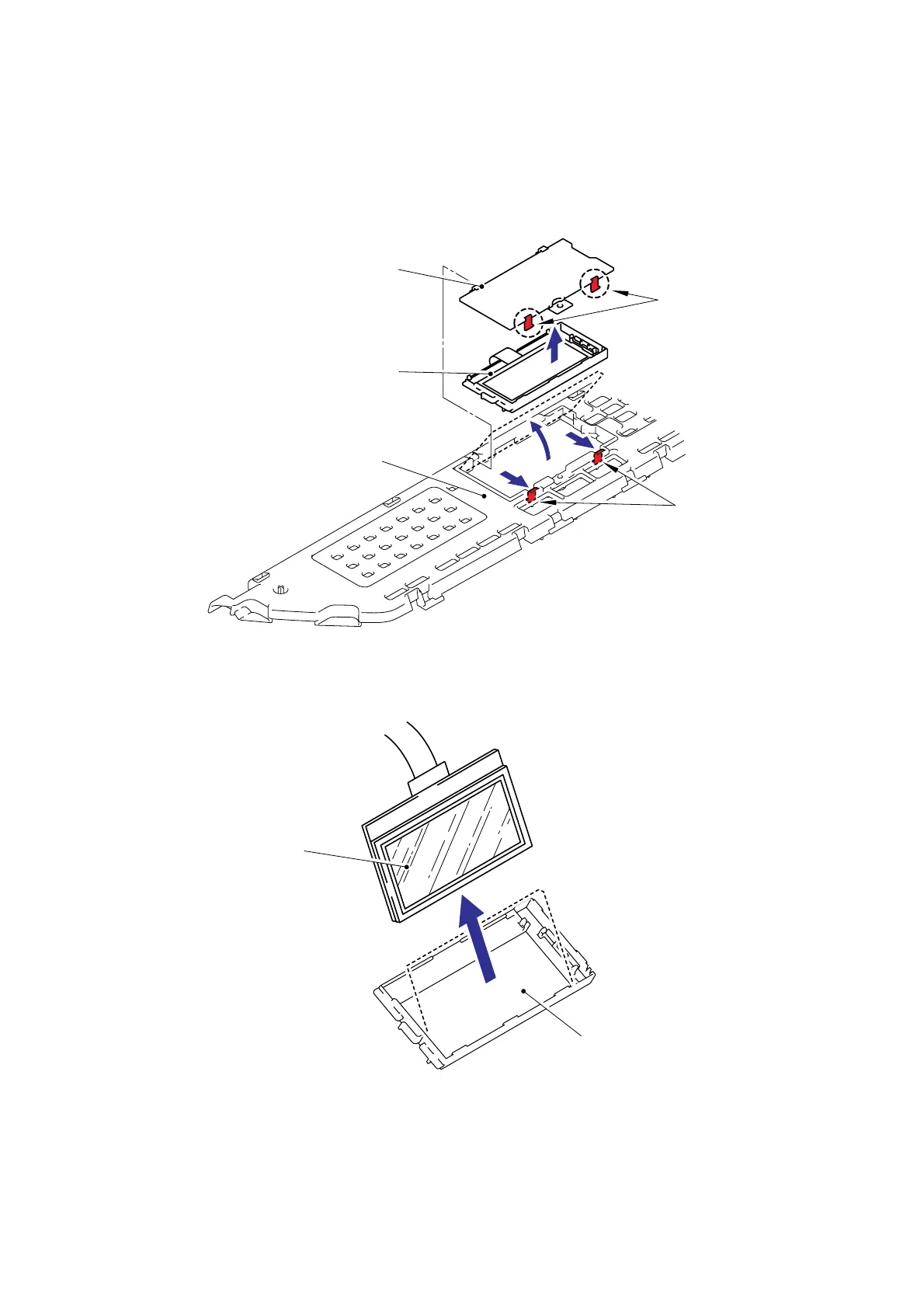

9.57 LCD Cover/Backlight Module/LCD
(1) Release the Hooks on the Panel cover to the direction of the arrow and remove the LCD
cover from the Panel cover.
(2) Remove the LCD ASSY.
Fig. 5-115
(3) Remove the LCD from the Backlight module.
Fig. 5-116
1a
1a
1b
1c
1a
1a
Hooks
Hooks
Panel cover
LCD ASSY
LCD cover
LCD
Backlight module
