9.30 Presser Roller/LF Spring
(1) Push the Hook to the direction of the arrow (1a) as shown in the figure below while
holding the Presser roller, and remove the Presser roller shaft from the hook.
(2) Pull the Presser roller shaft out of the Presser roller.
(3) Remove the two LF springs.

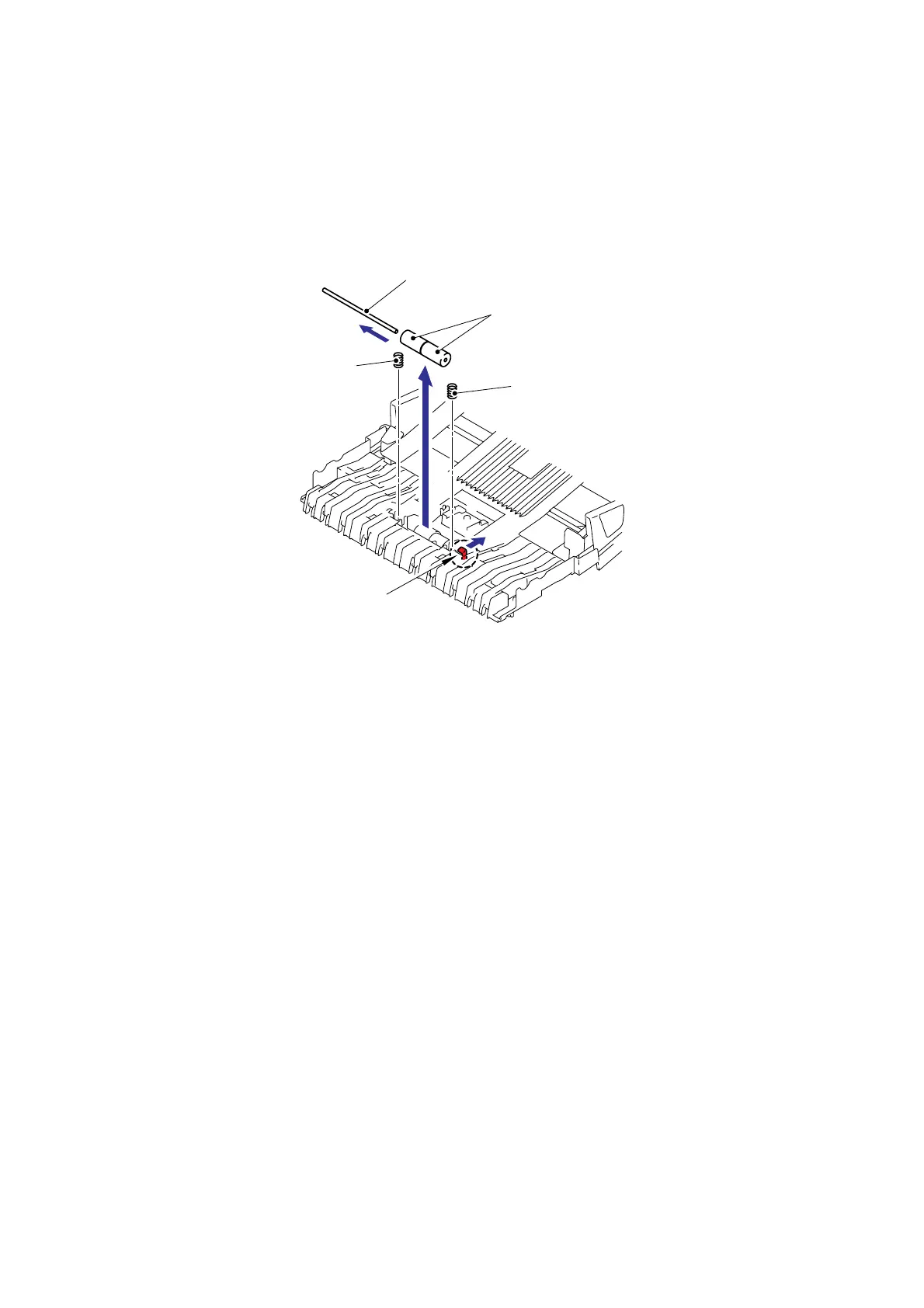

Fig. 5-70
Presser roller shaft
Presser rollers
LF spring
LF spring
Hook
2
1a
1b
