9.50 FFC Cable ASSY

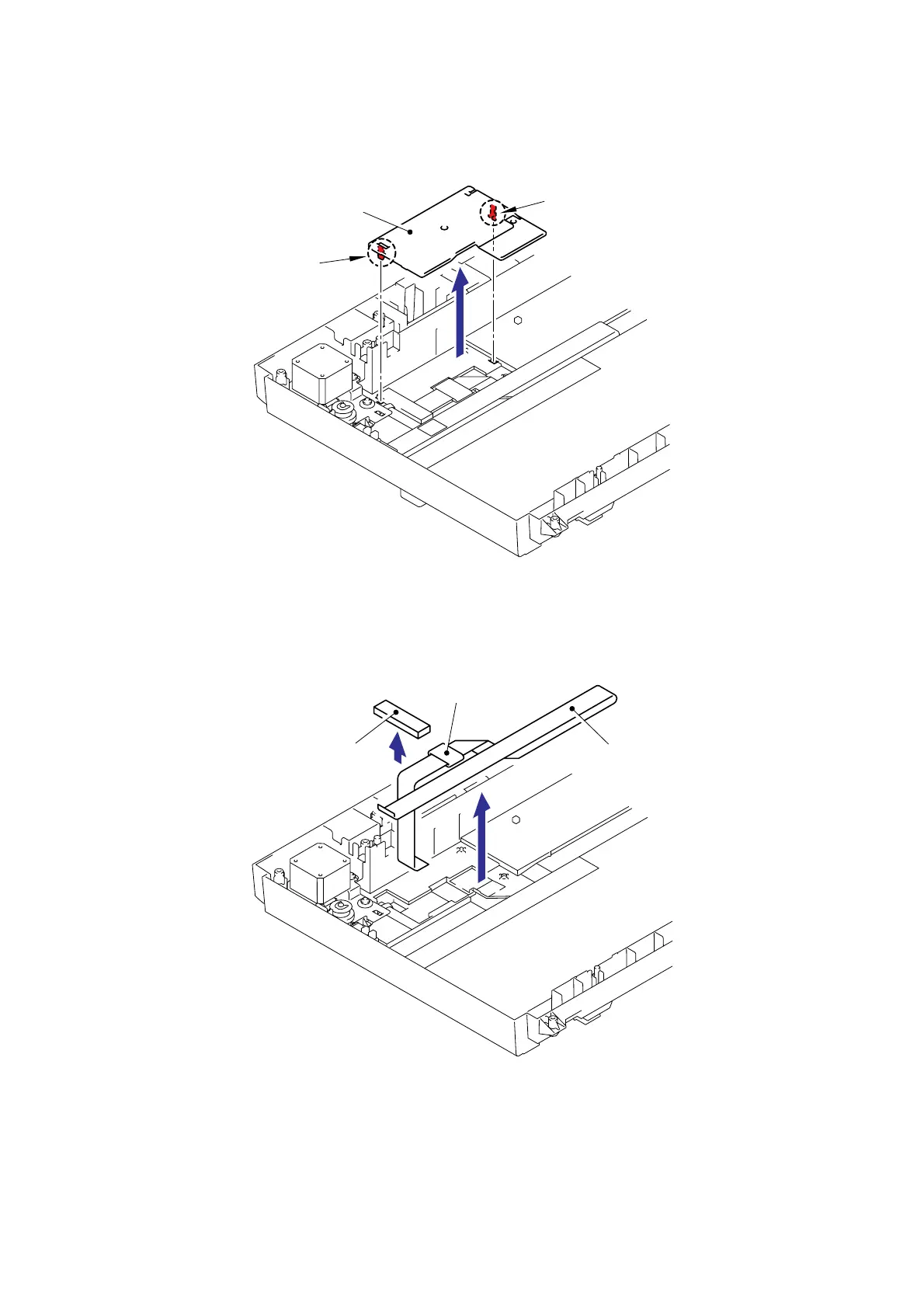

(1) Release the Hooks and remove the FFC plate.
Fig. 5-103
(2) Remove the Shield sponge and FFC cable ASSY.
(3) Remove the Flat core from the FFC cable ASSY.
Fig. 5-104
Hook
Hook
FFC plate
2
3
Shield sponge
Flat core
FFC cable ASSY
