5-100
Confidential
9.62 Side Cover R
(1) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 1a to 1d.

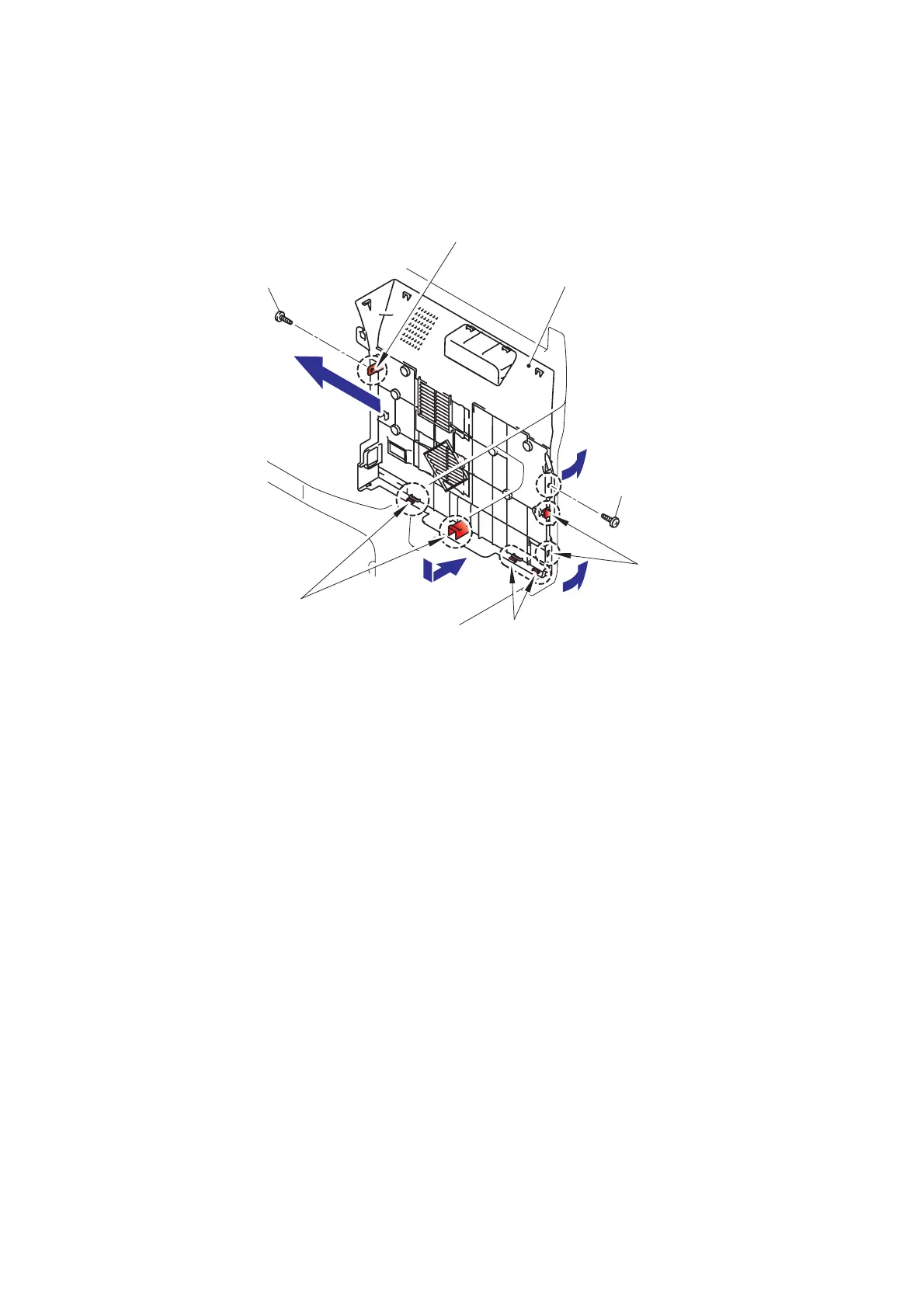

Fig. 5-128
1d
1c 1b
1a
Taptite, cup S M3x6
Taptite, cup S M3x6
Hook
Hooks
Hooks
Hooks
Side cover R
