5-62
Confidential
9.25 ADF Relay PCB
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the ADF relay PCB.

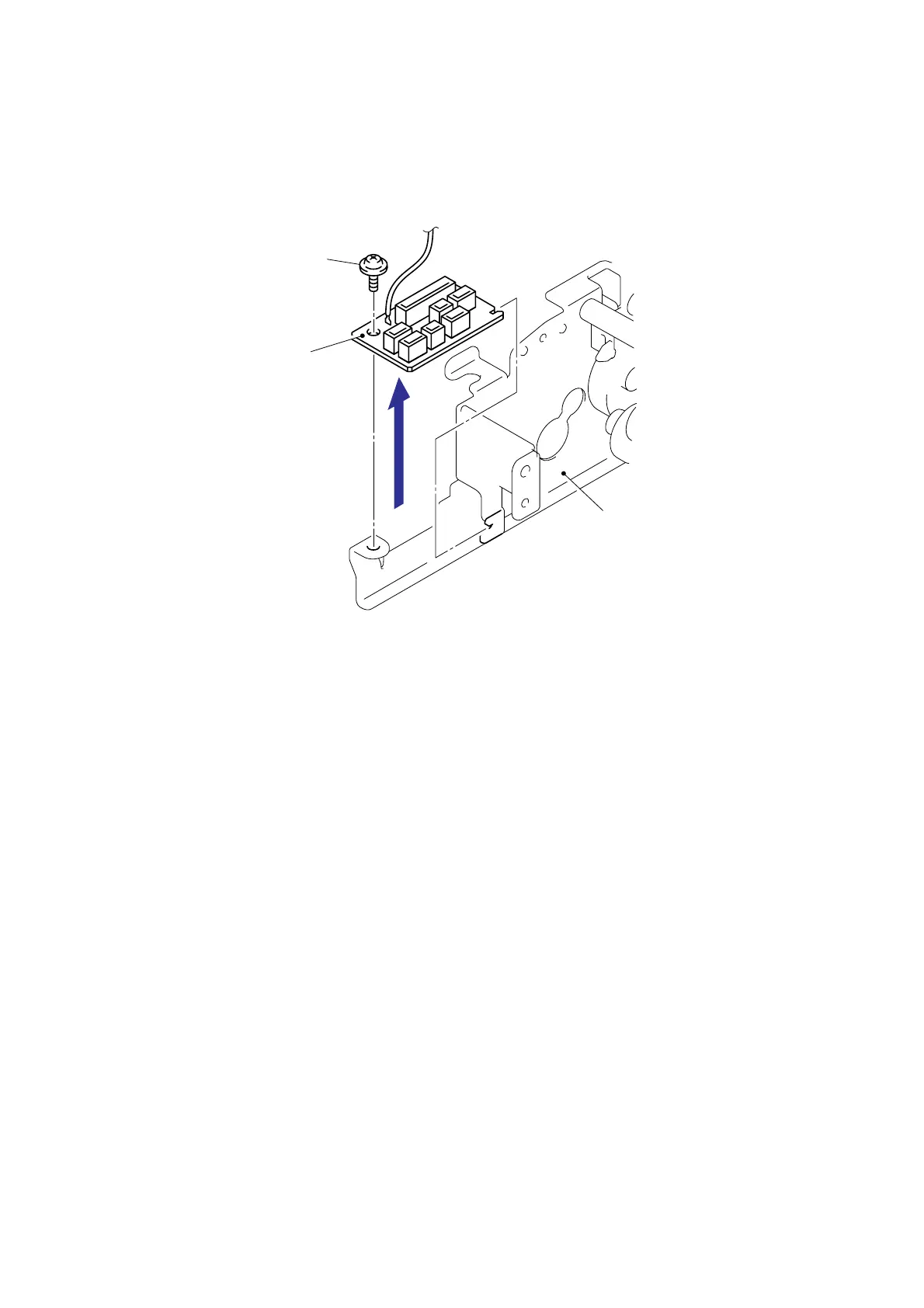

Fig. 5-62
ADF Relay PCB
Motor frame ASSY
Taptite cup S M3x8
